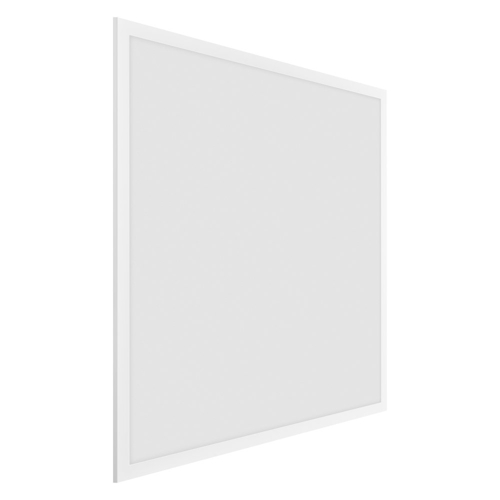

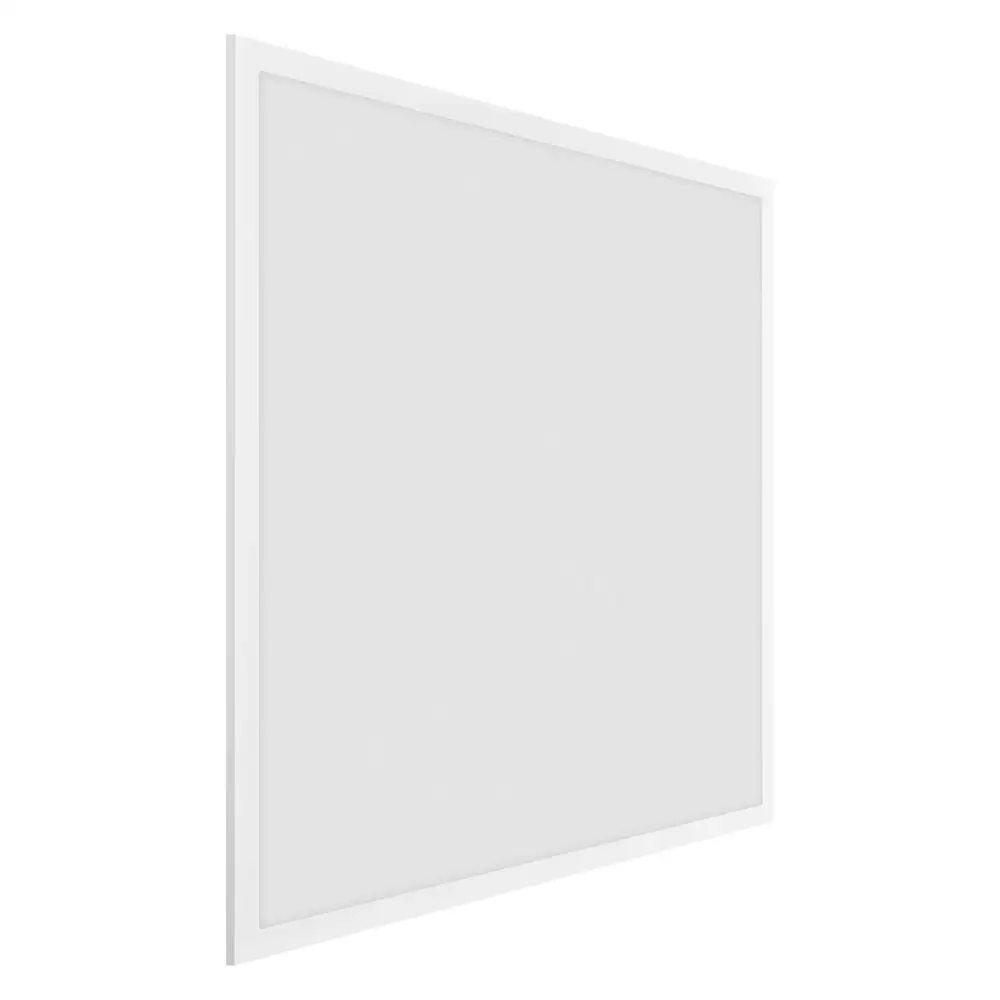

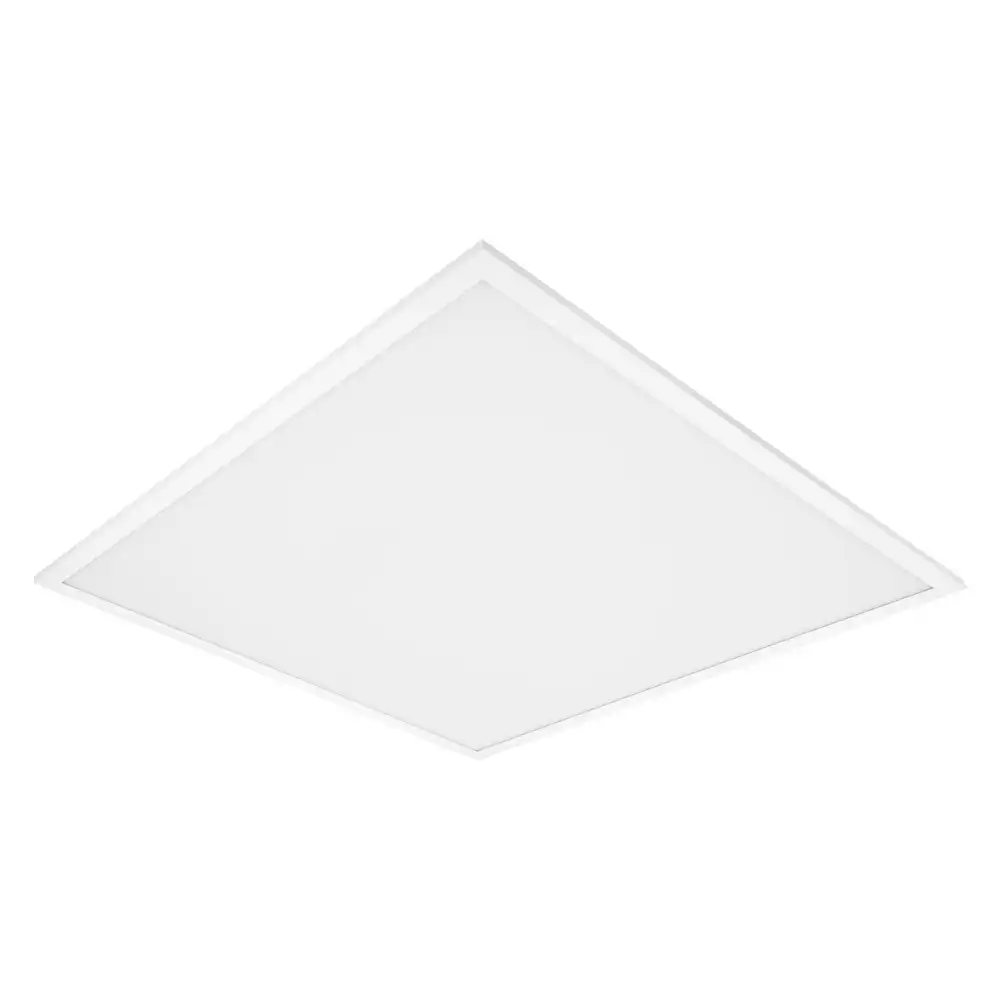

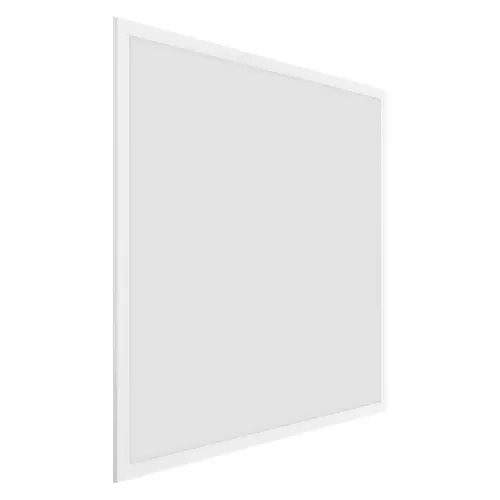

PANEL COMFORT 600 UGR<19 DALI CS CRI90 36W 930 940 U19 DALIVR CS CRI90

+19 Next

Features
EANs & additional codes
Related files

Features

Výrobce:
Manufacturer	LEDVANCE
Product family	Comfort.GEN2
Logistické informace:
EAN	4058075694507

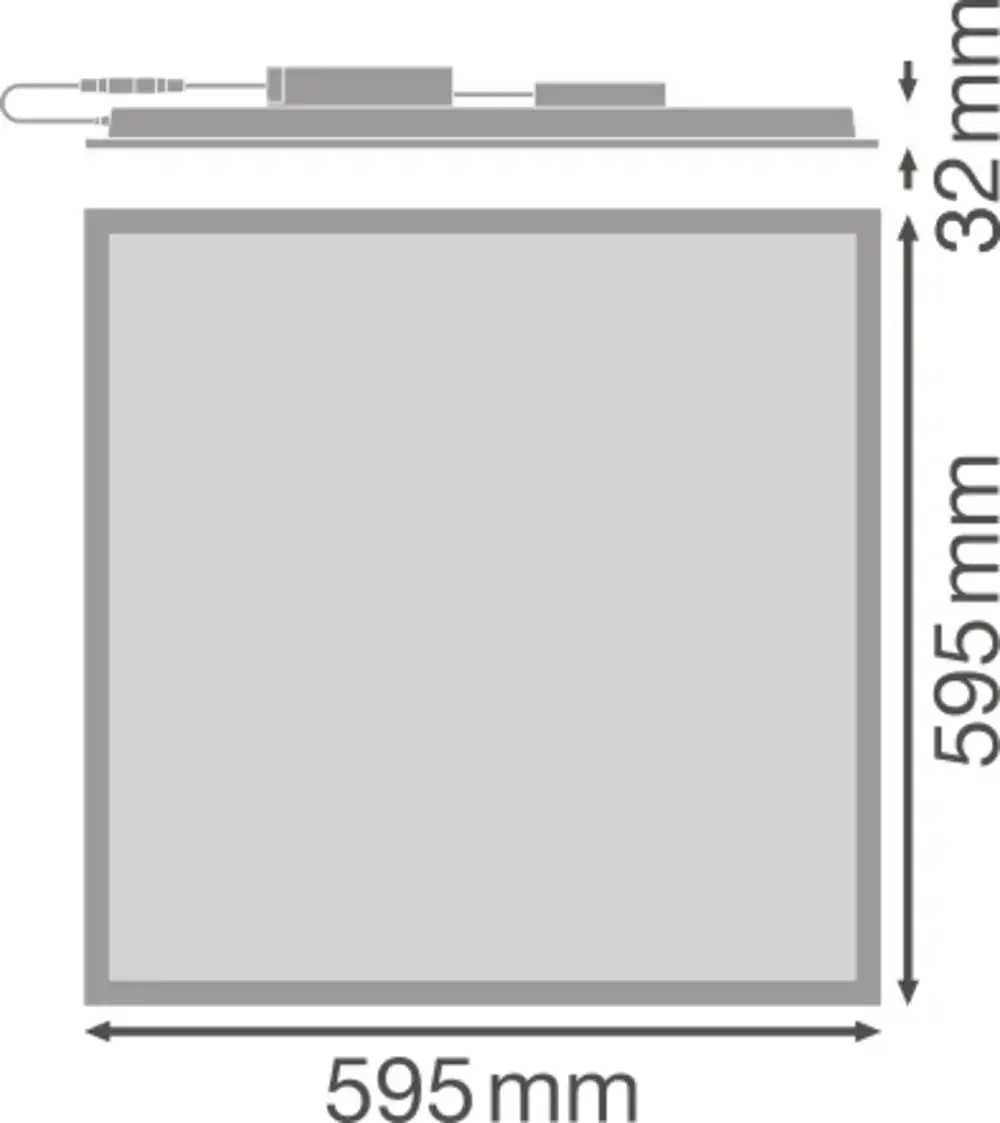

Length	595mm
Width	595.00
Height	32mm
Packaging	4 ks
Energy efficiency label	D
Others
barva těla	bílá

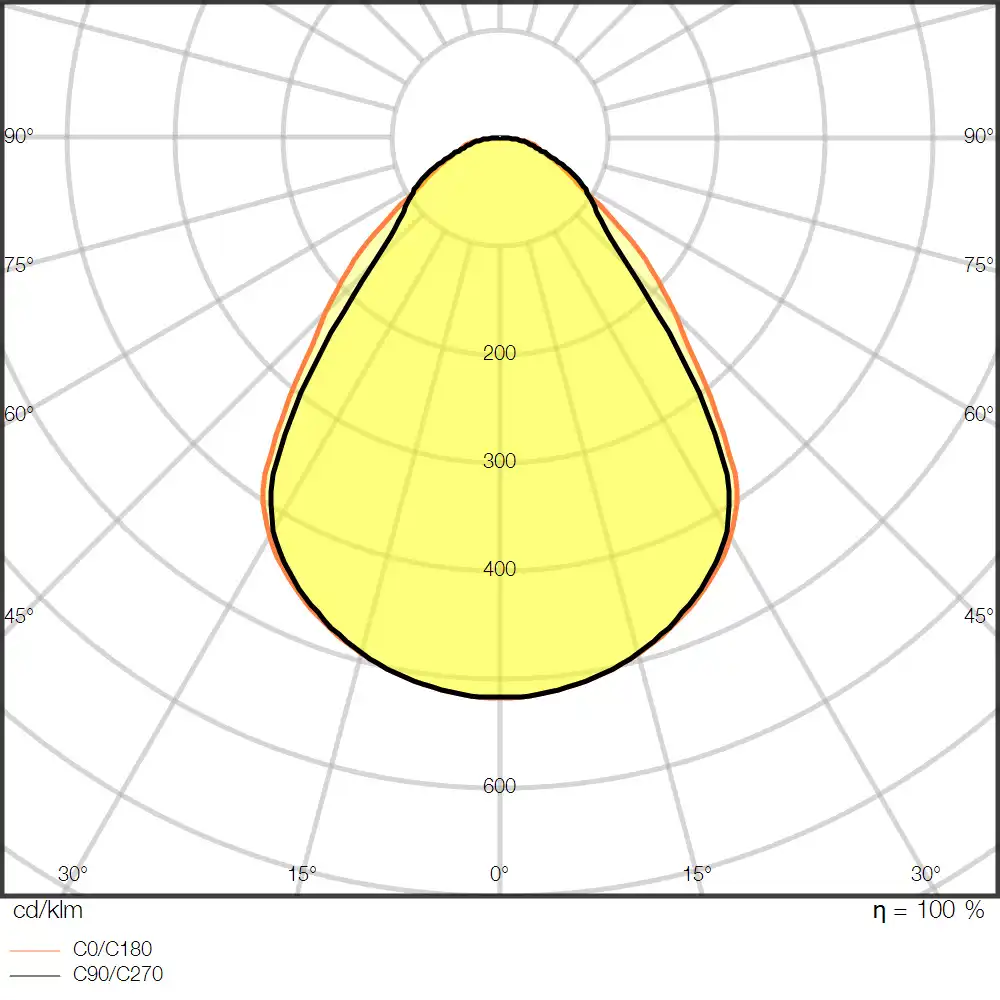

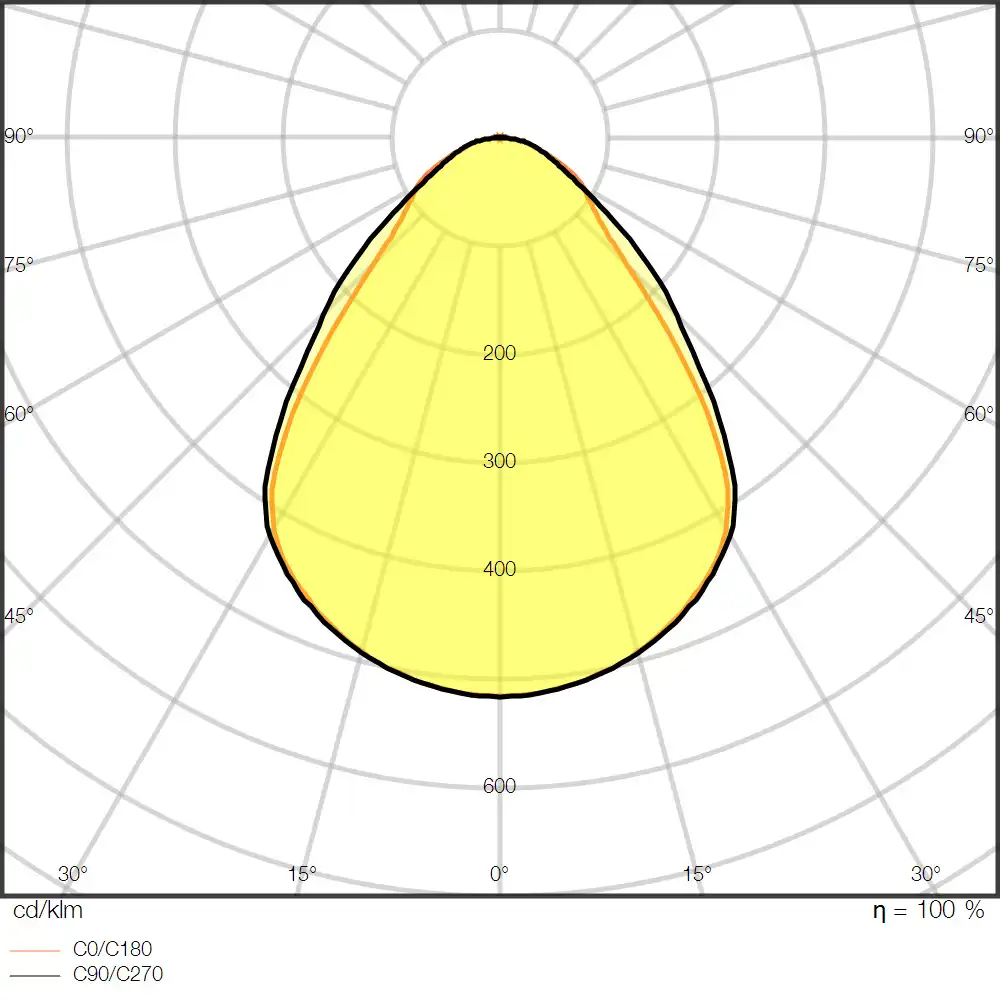

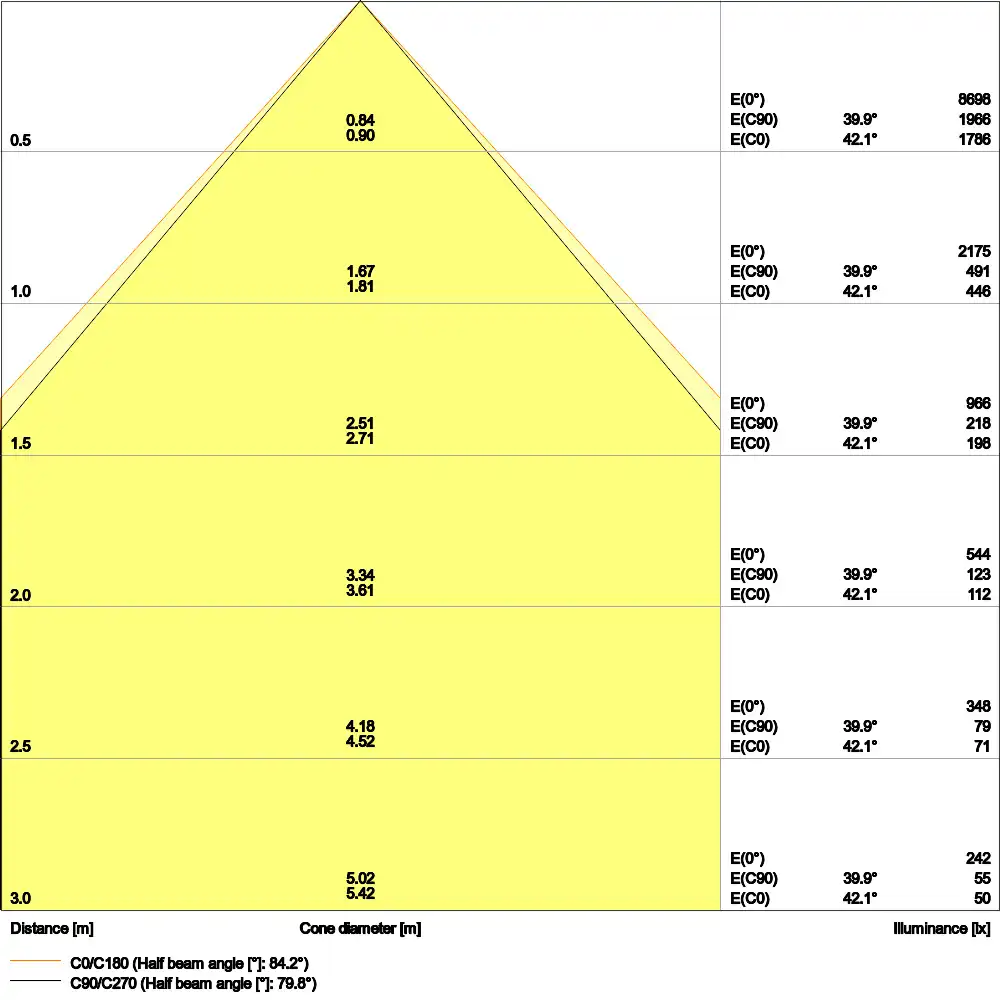

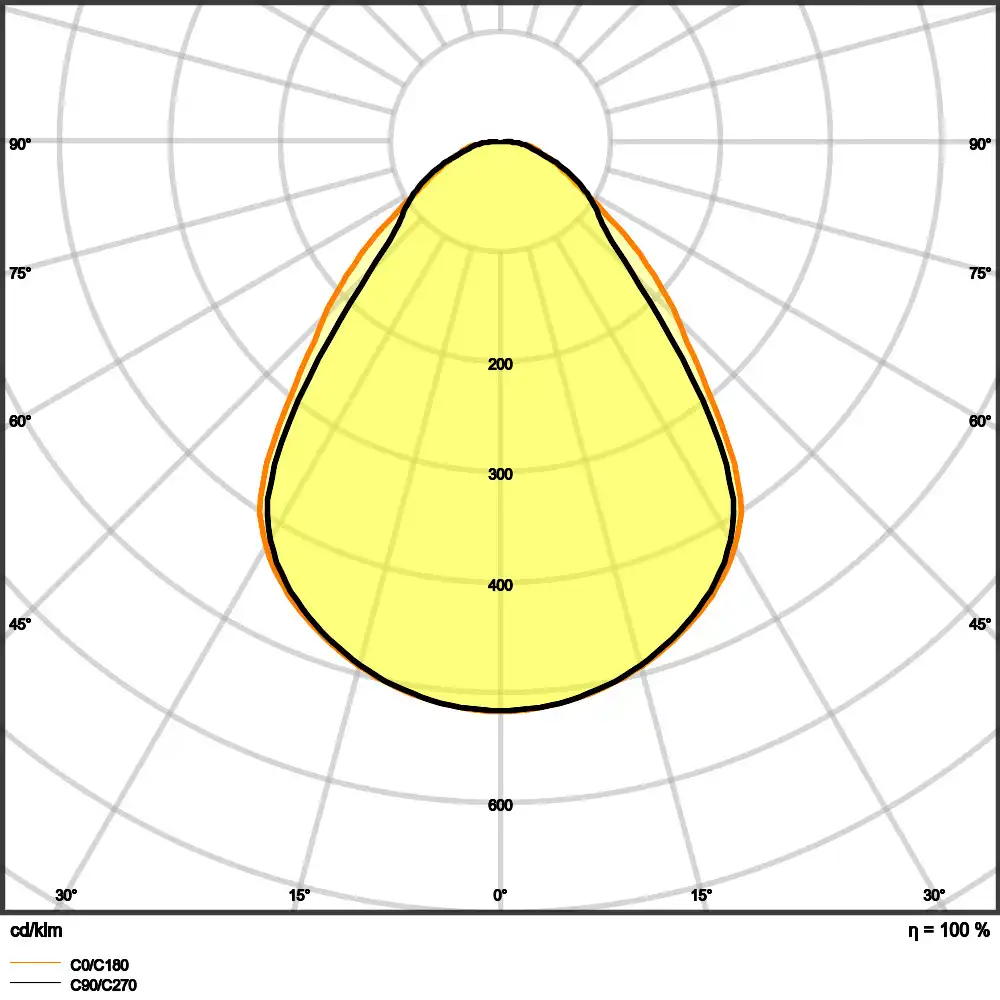

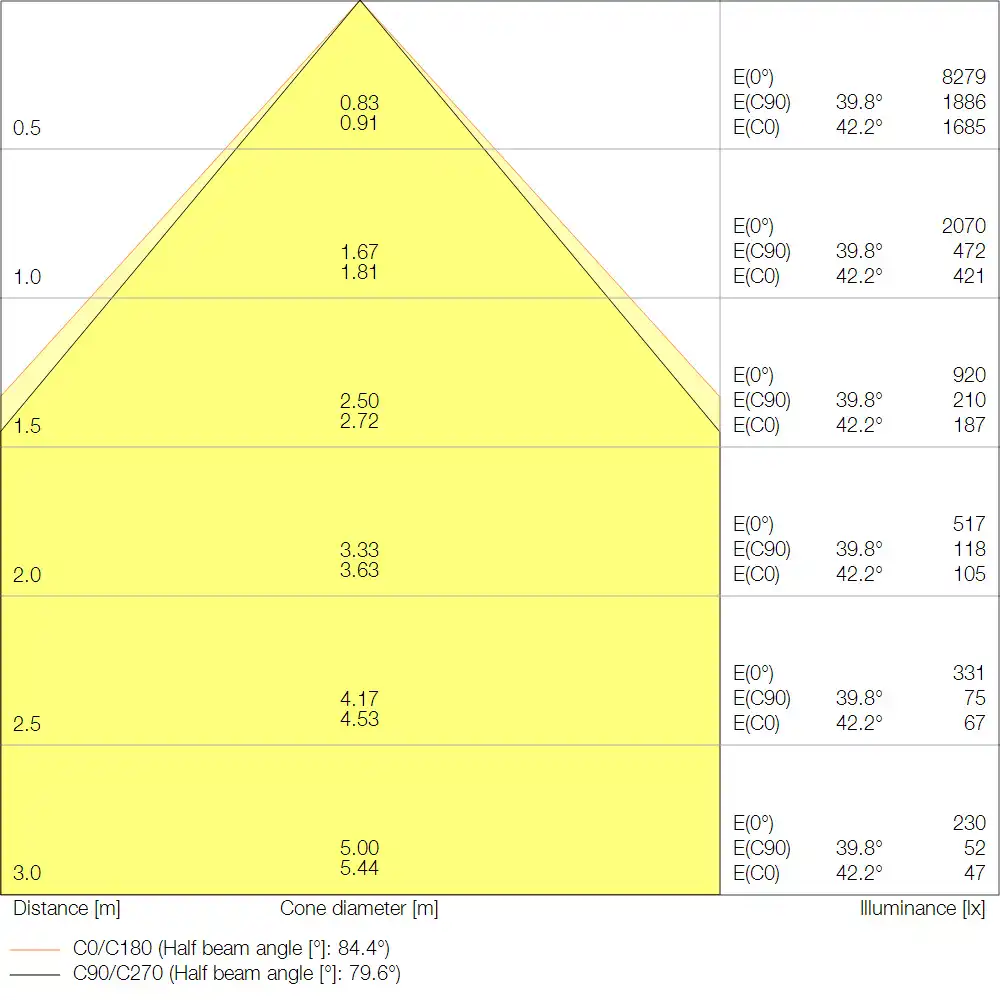

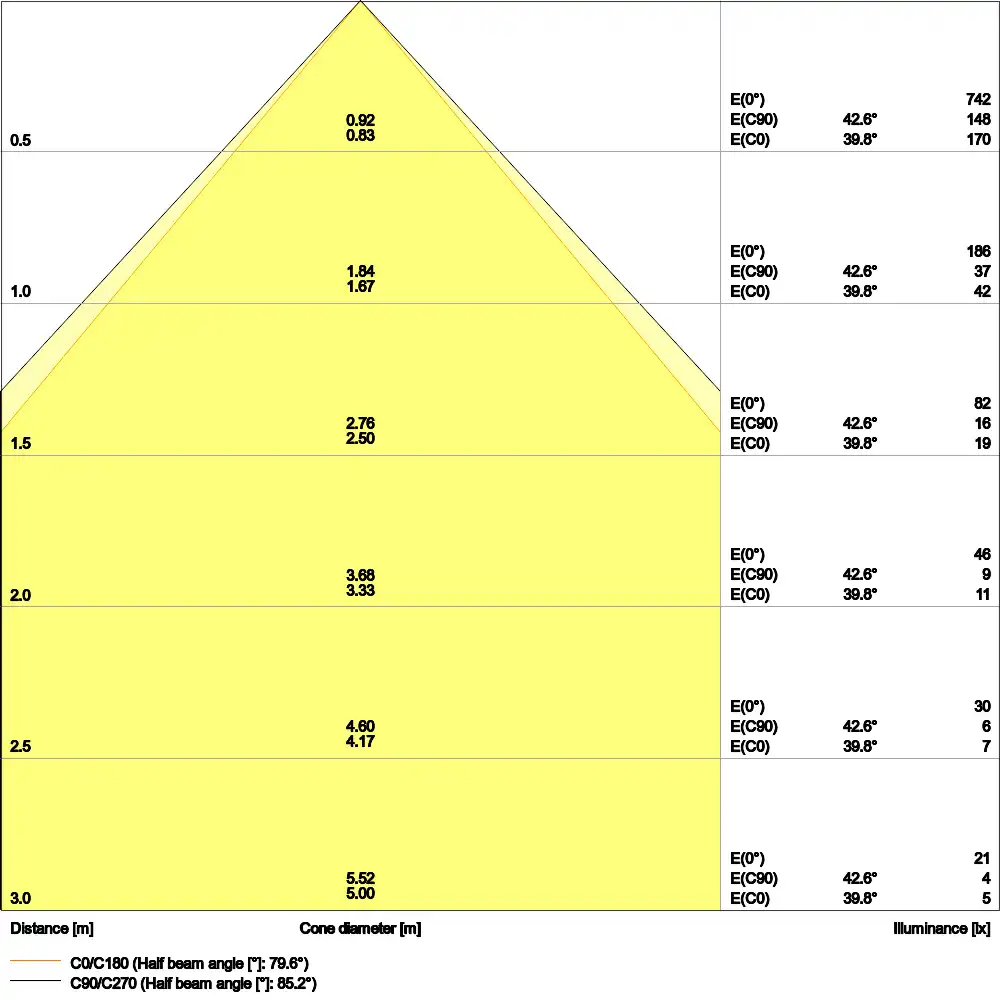

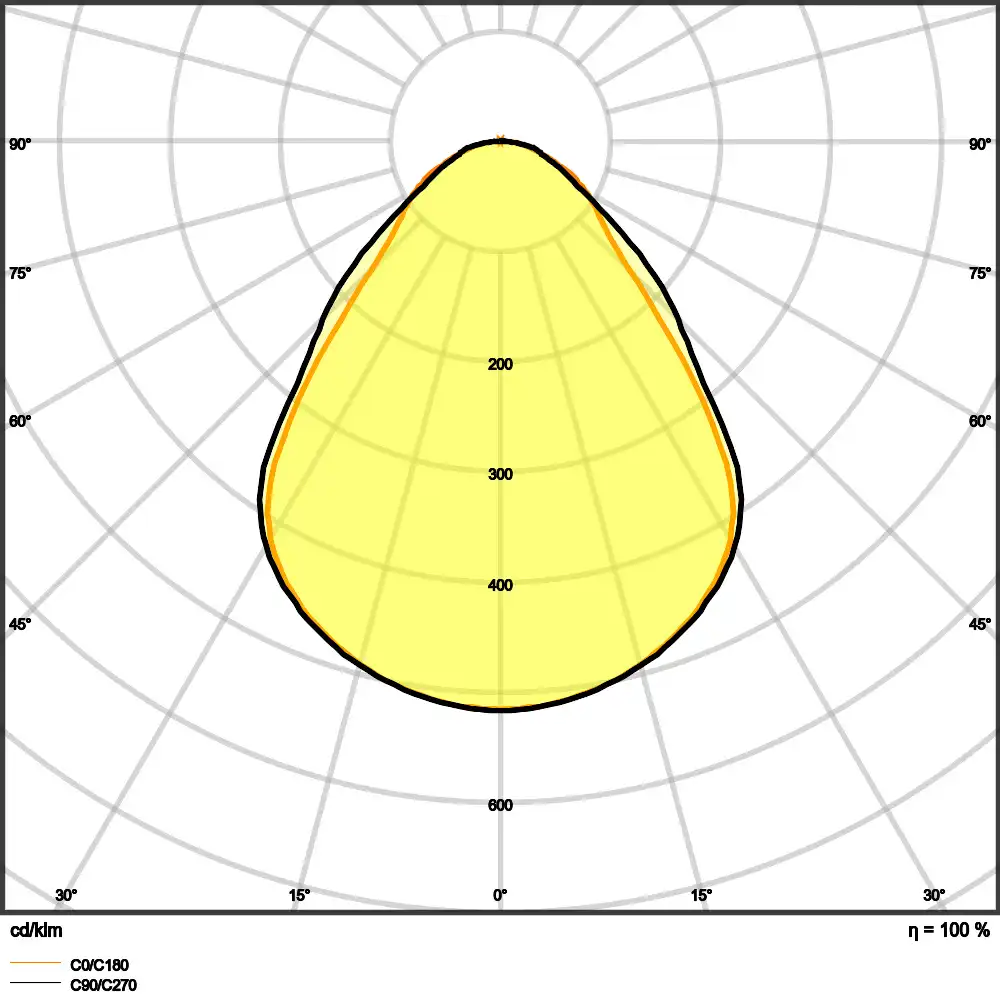

Beam angle	>80° st.
Built-in height	575
Built-in width	575
Cap-base	ostatní
Colour	bílá
Colour consistency	SDCM3
Colour of light adjustable	Jednotlivé pozice

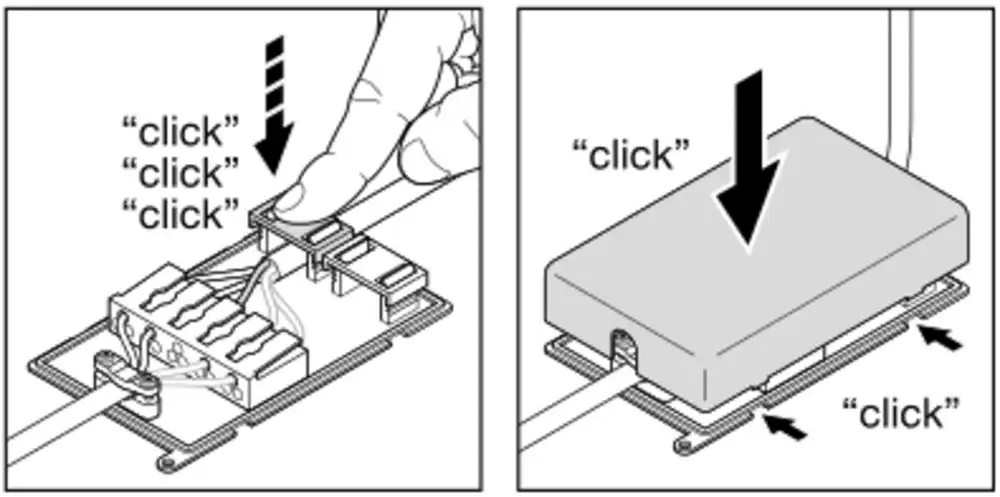

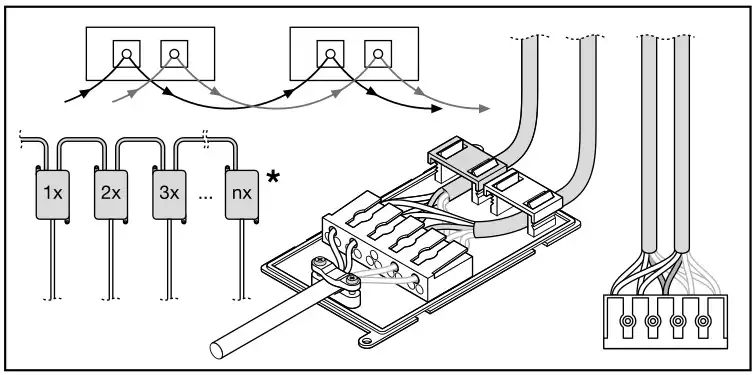

Connection type	zástrčná svorkovnice
Cover material	Plastic matt/satinized
CRI	90+
Degree of protection (IP), front side	IP40
Degree of protection (IP), rear side	IP20
Dimmable	DALI
Direct/Indirect	Přímé
Driver included	Phase cut-on
Emergency gear	Phase cut-on
Exchangeable control gear	Phase cut-on
Filament test according to IEC 60695-2-11	650 °C - 30 s
Fixture class	II
Flammable surface installation	Not dimmable
Height/Depth	32.00

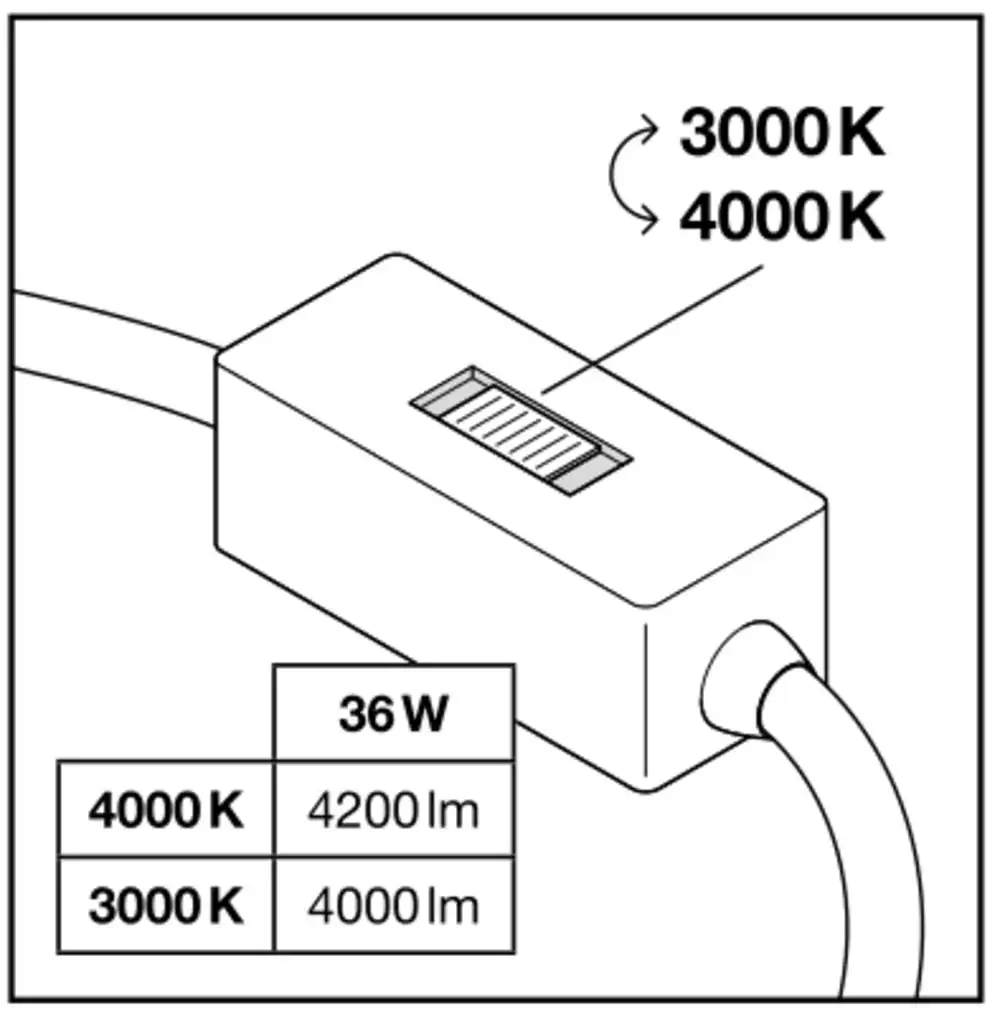

Chromaticity	3000-4000 K
Chromaticity(verbal)	Nastavitelná
IK rating	IK02
Item category	Professional fixtures
Item subcategory	LED panels
Lamp included	Phase cut-on
Lifespan	100000 hod

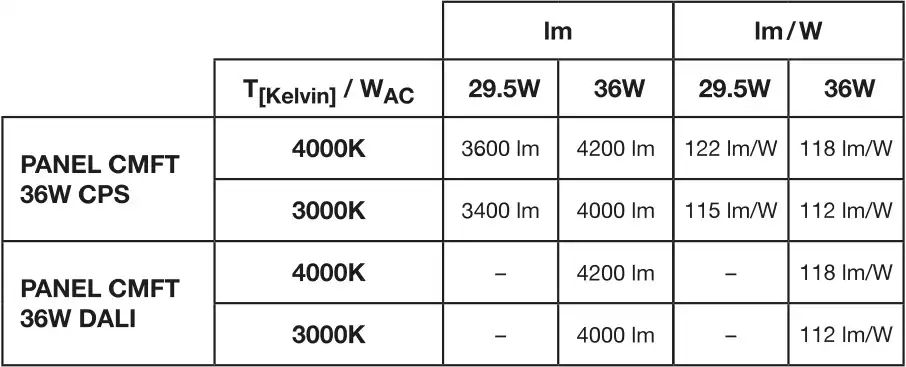

Luminous flux	4200 lm
Material housing	Steel
Poles	5
přepravní rozměr cm	69.4 cm
Suitable for built-in mounting	Phase cut-on
Suitable for ceiling mounting	Phase cut-on
Suitable for light line configuration	Not dimmable
Suitable for surface mounting	Phase cut-on
Suitable for suspended mounting	Phase cut-on
Suitable for wall mounting	Phase cut-on
Switch	Not dimmable
Symmetrical/Asymmetrical	Symmetrical
Transport height	694
Transport length	52
Transport width	622
Typ připojení	Vhodný pro průběžnou montáž
typ svítidla	LED Panel
účinnost svítidla	118
UGR	19
Voltage type	AC/DC
výzbroj	Electronic ballast
With motion sensor	Not dimmable
IP rating	IP40
Lamp	LED module
Power	36 W
Volatge	220-240 V
