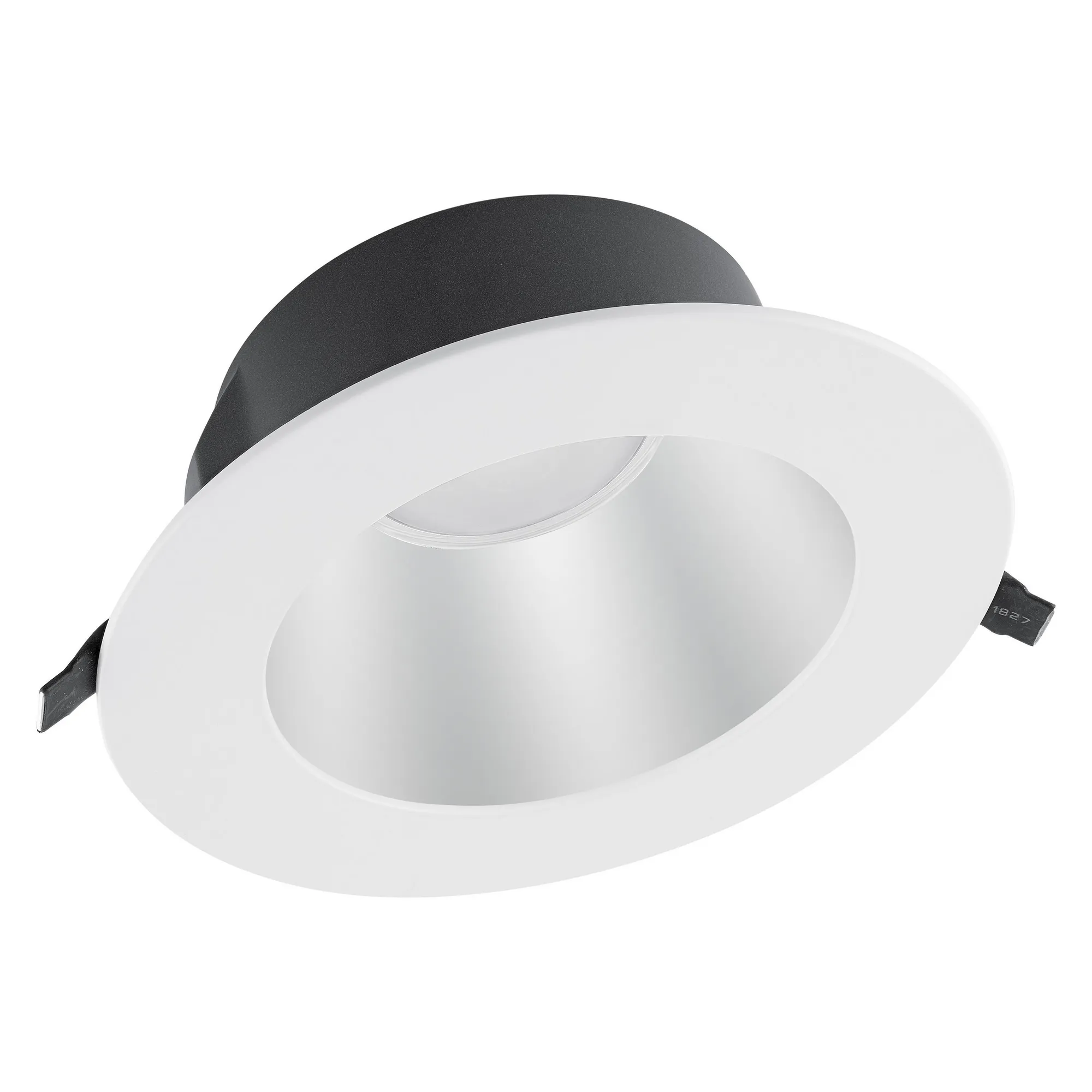

DOWNLIGHT UGR19 DN195 21 W 830 WT IP54

+13 Next

Features
EANs & additional codes
Related files

Features

Výrobce:
Manufacturer	LEDVANCE
Product family	UGR19
Logistické informace:
Packaging	16.0 ks
EAN	4058075459250
Length	220.0
Diameter	220.0

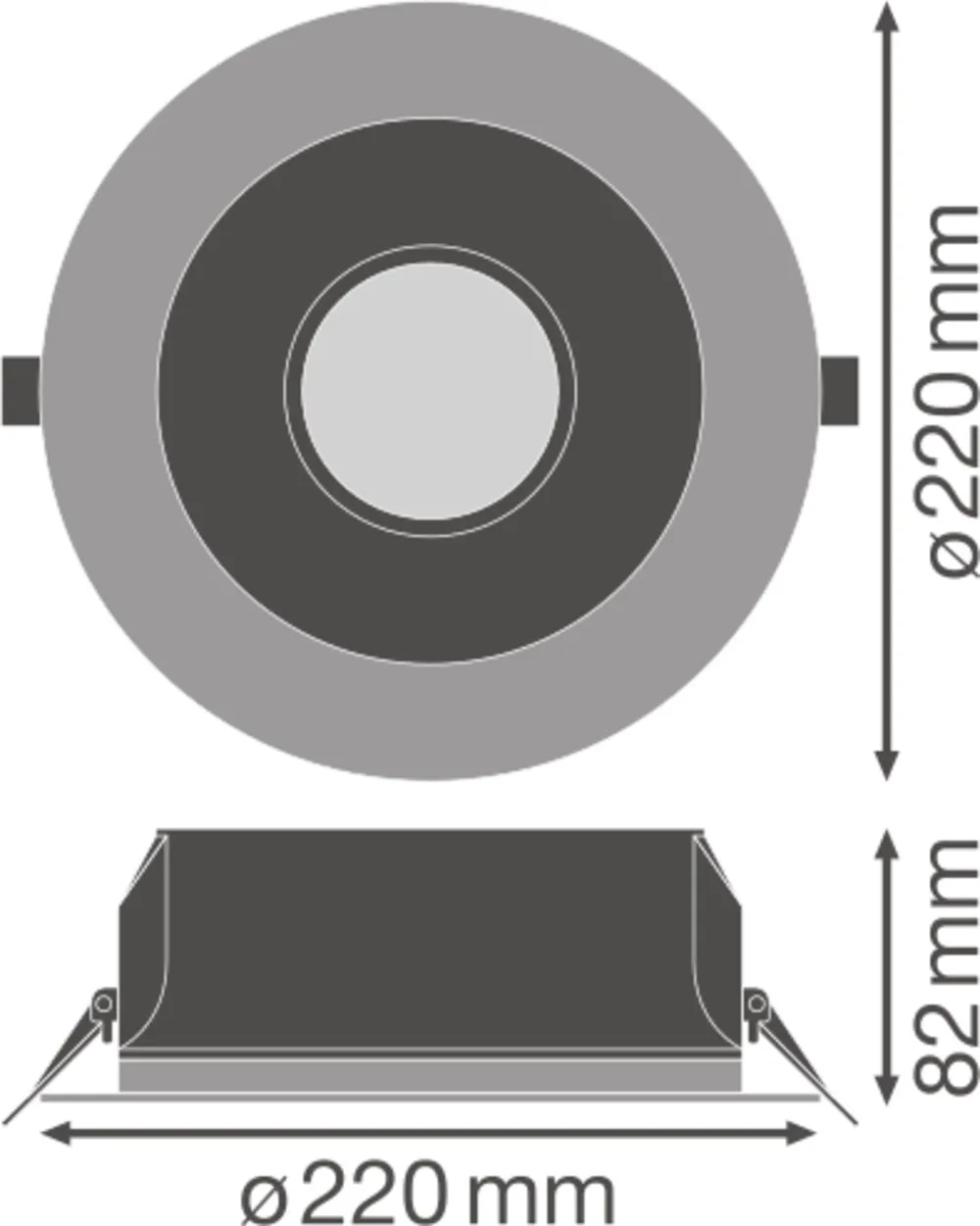

Dimensions	220x220x82mm
Width	220.0
Height	82mm
Energy efficiency label	A
Others
Adjustability	pevný
barva těla	bílá

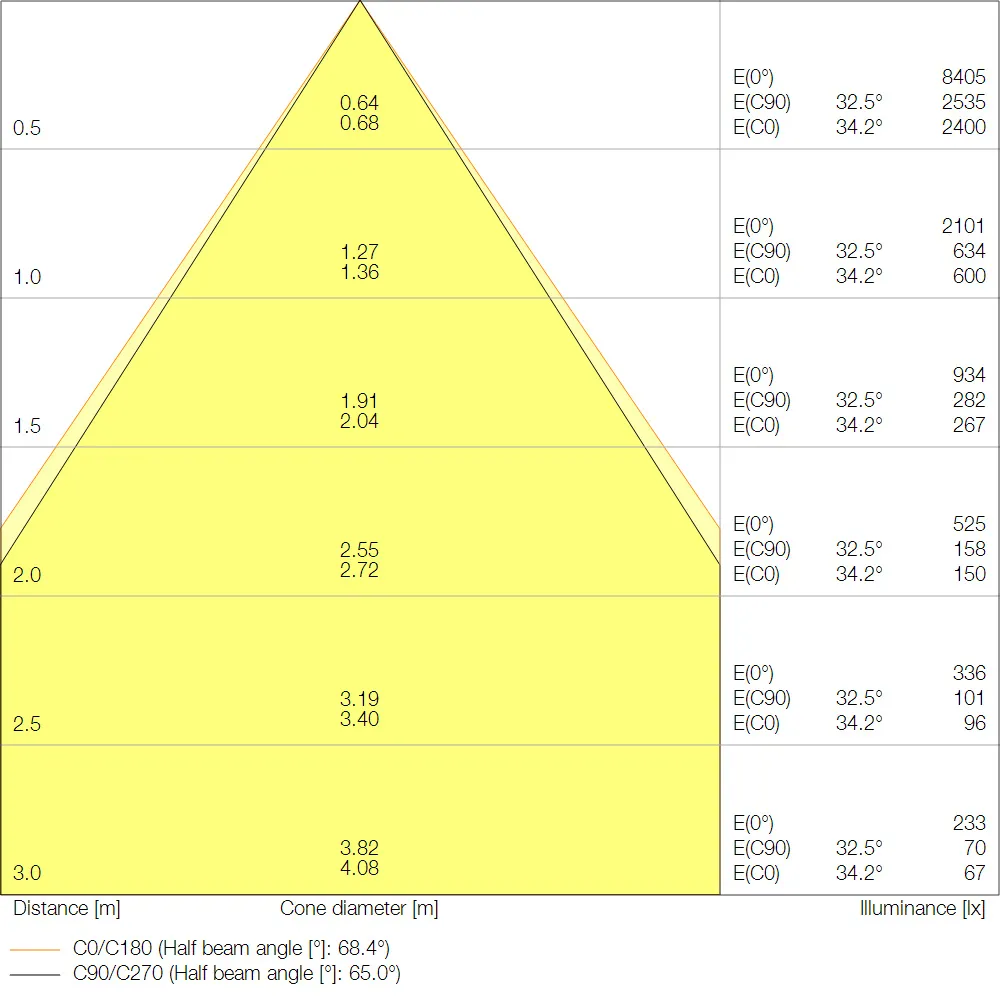

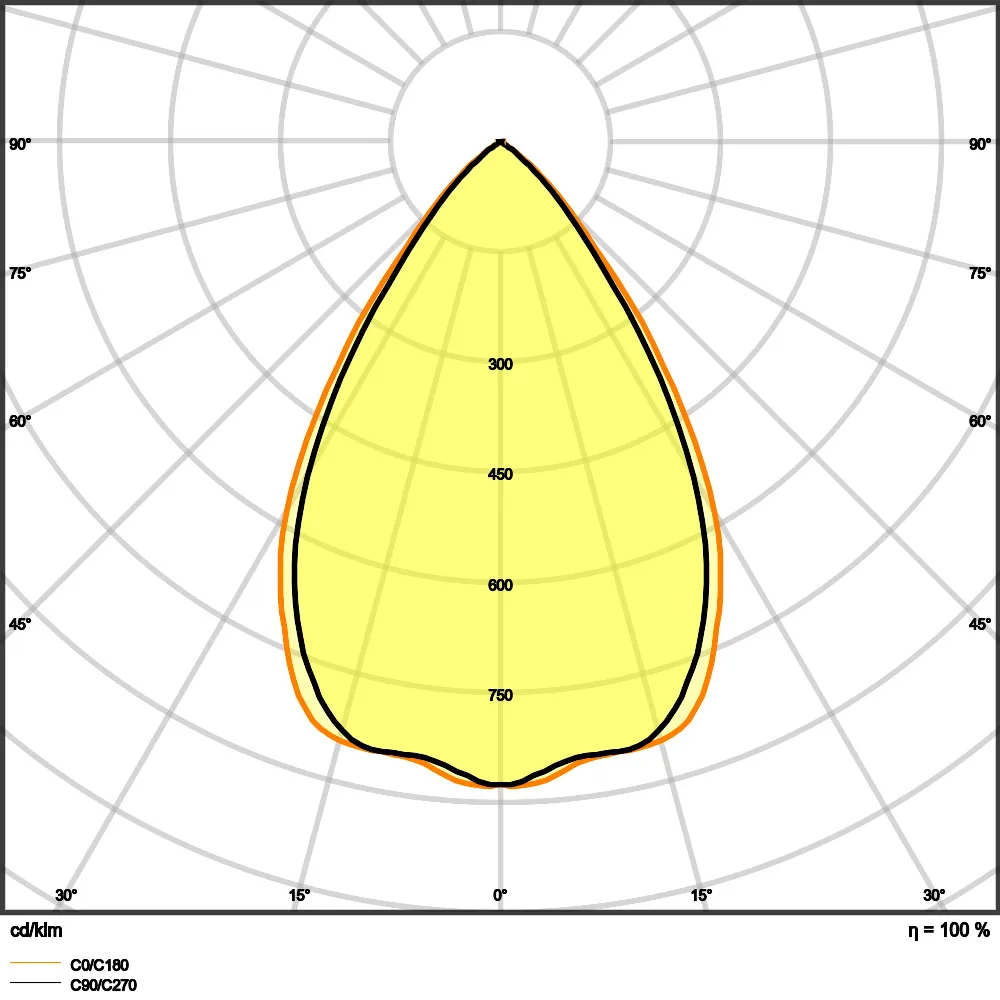

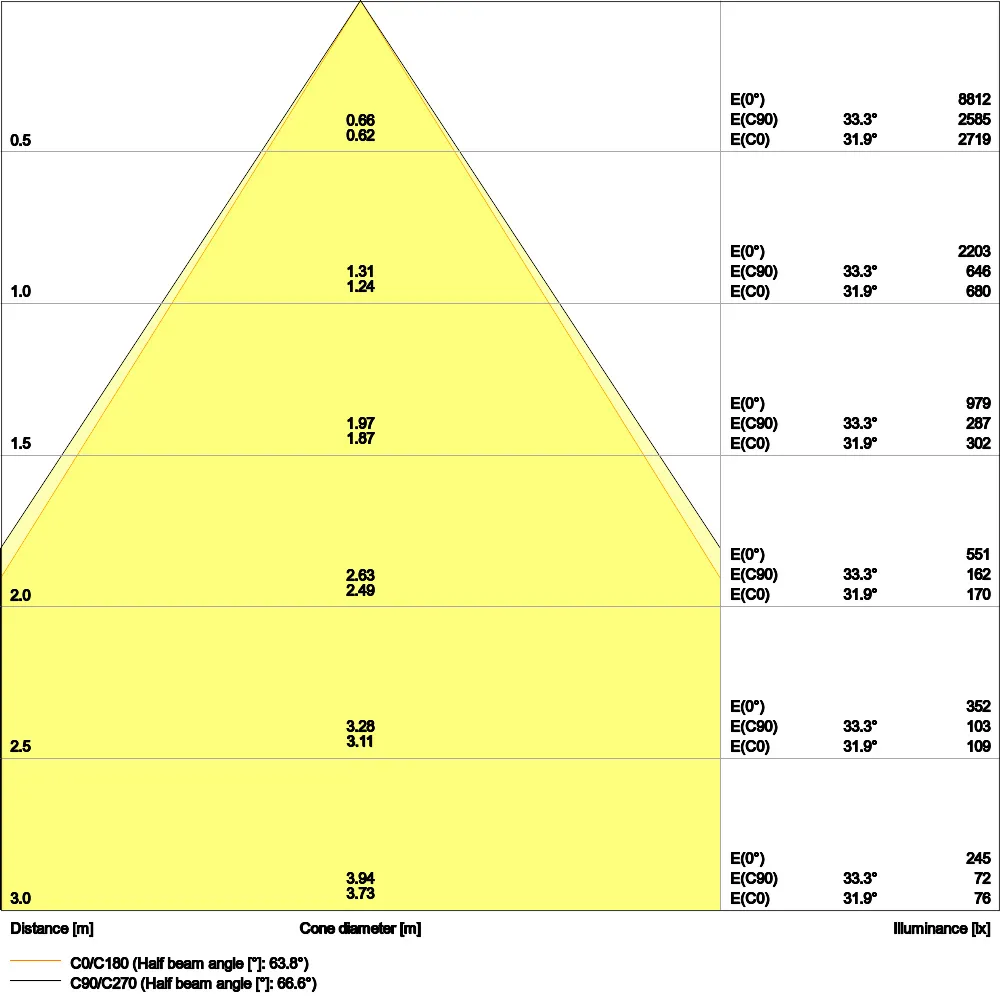

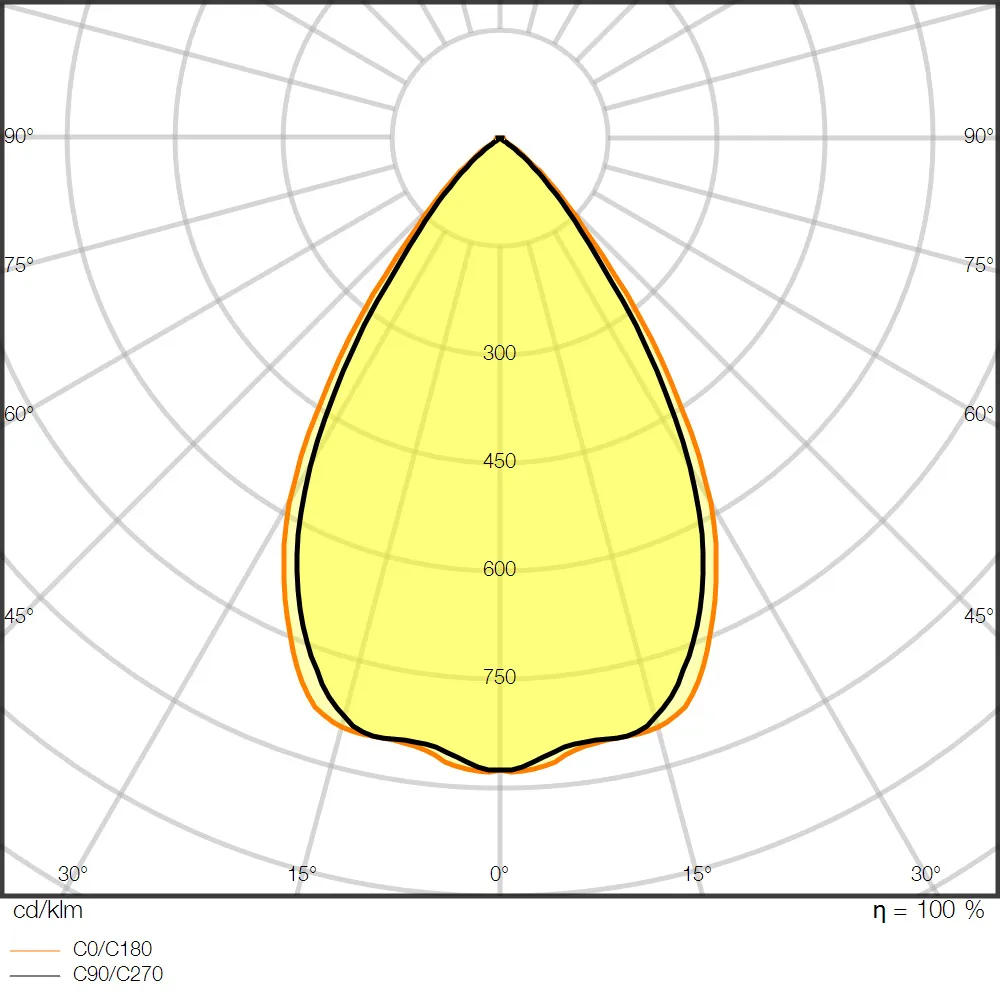

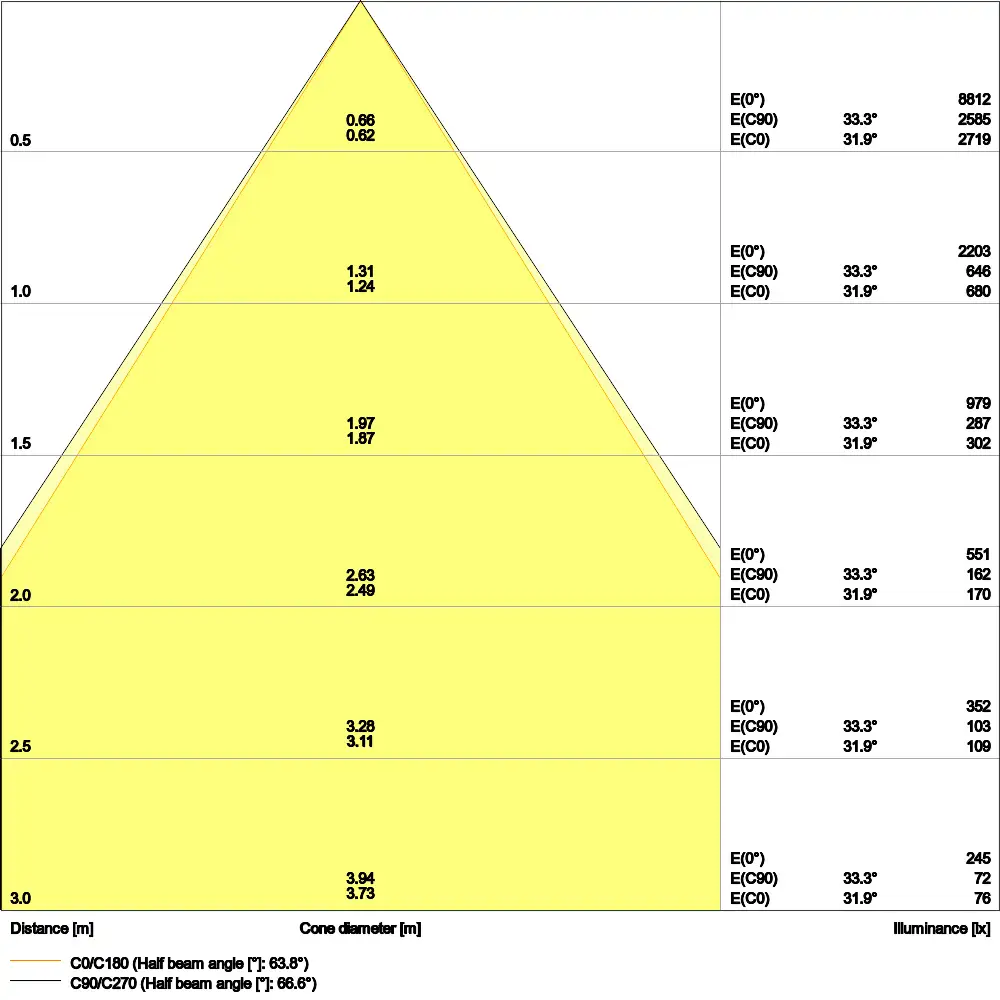

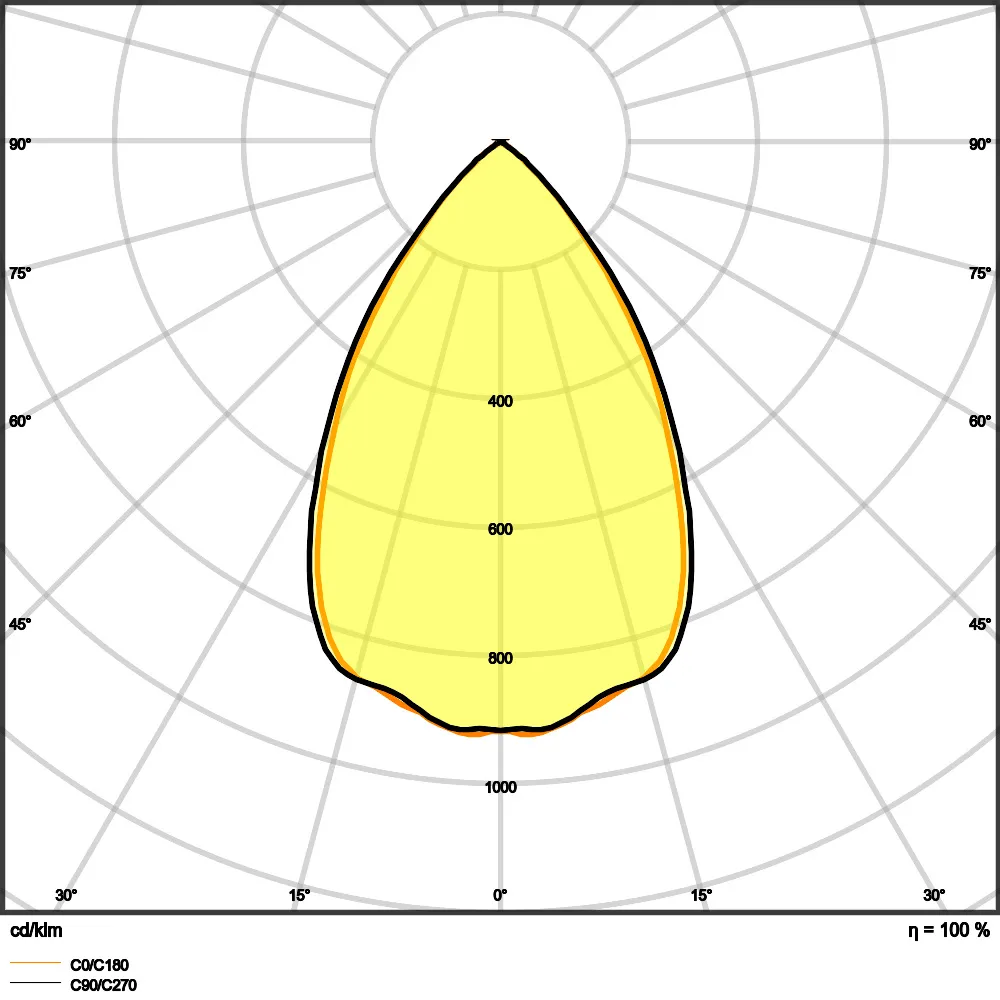

Beam angle	65.0 st.
Cap-base	Not applicable
Colour consistency	SDCM5
Colour of light adjustable	Not dimmable

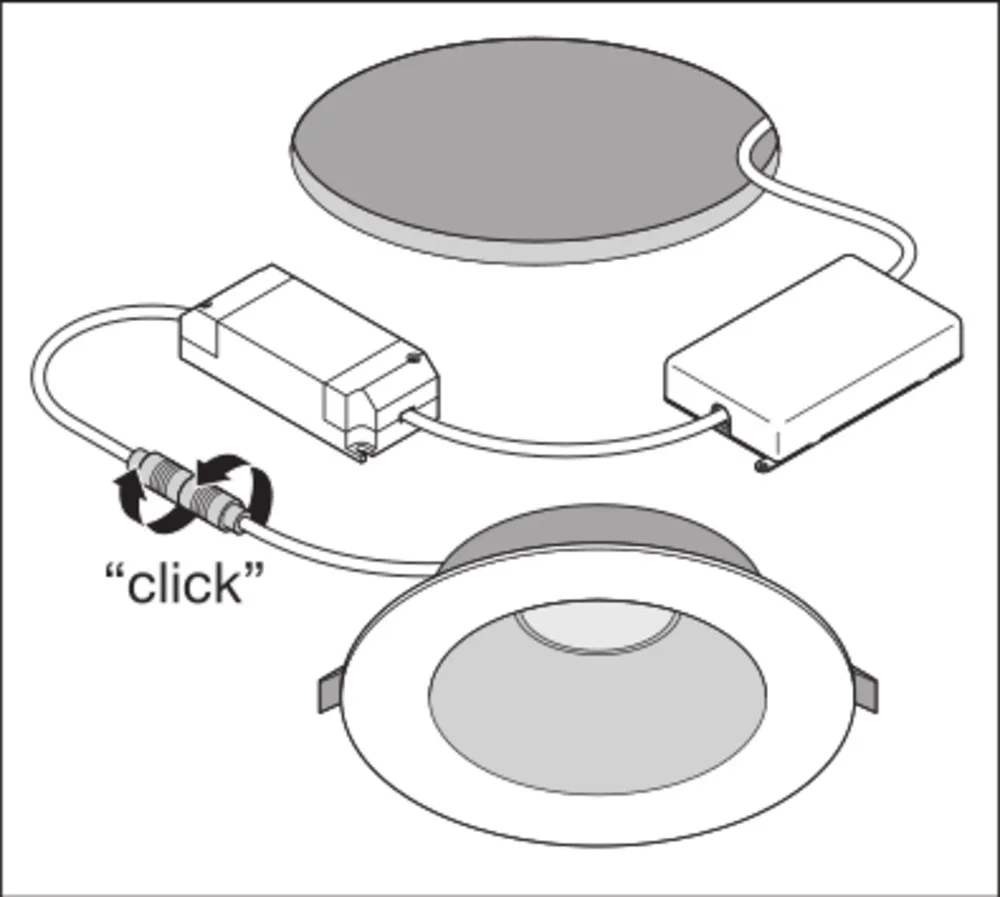

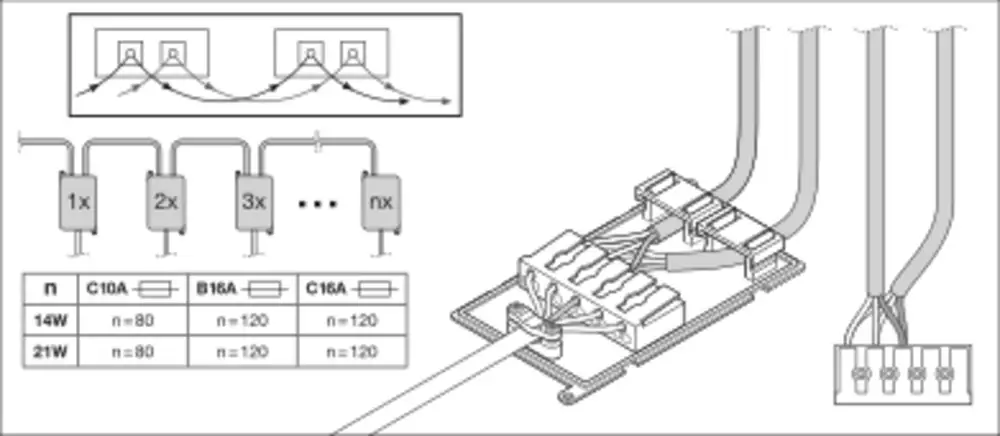

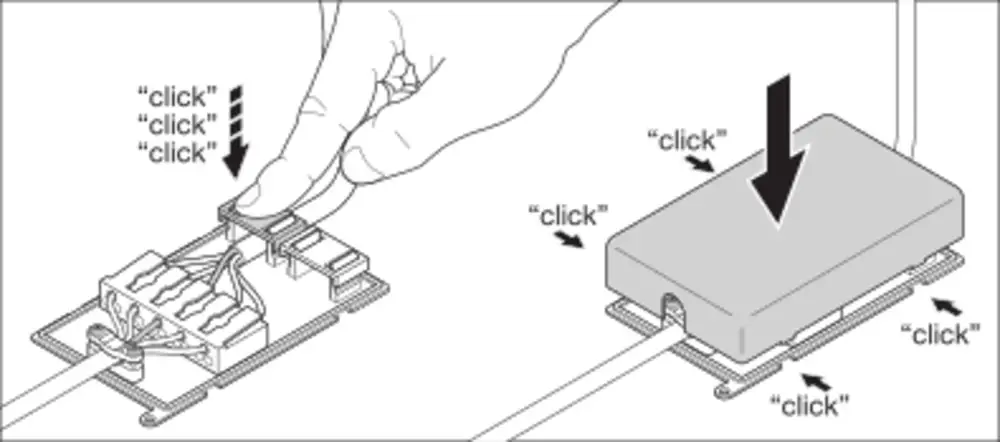

Connection type	zástrčná svorkovnice
Cover material	Plastic, opal

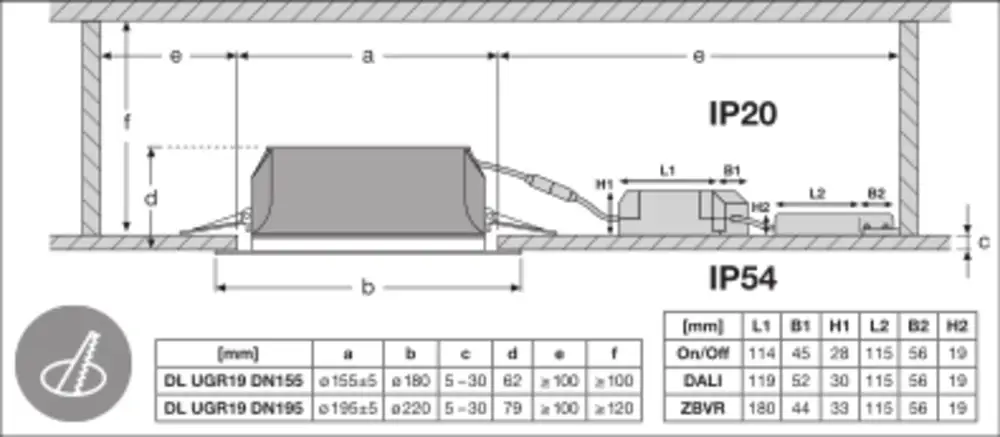

Cutout	195
Degree of protection (IP), front side	IP54
Degree of protection (IP), rear side	IP20
Direct/Indirect	Direct
Driver included	Phase cut-on
Exchangeable control gear	Phase cut-on
Filament test according to IEC 60695-2-11	650 °C - 30 s
Fixture class	II
Flammable surface installation	Not dimmable
Height/Depth	82.0
Chromaticity	3030 K
Chromaticity(verbal)	Teplá
IK rating	IK03
IP rating	IP54
Item category	Professional fixtures
Item subcategory	Downlights
Lamp included	Phase cut-on
Lifespan	60000 hod
Material housing	Aluminium
Number of lamps	0
Outter diameter	220.0
Poles	2.00
přepravní rozměr cm	26.6 cm
Reflector	Vysoký lesk
Suitable for built-in mounting	Phase cut-on
Suitable for ceiling mounting	Phase cut-on
Suitable for surface mounting	Phase cut-on
Suitable for suspended mounting	Not dimmable
Symmetrical/Asymmetrical	Symmetric
Transport height	266
Transport length	262
Transport width	108.0
Typ připojení	Vhodný pro průběžnou montáž
typ svítidla	downlight
účinnost svítidla	115
Voltage type	AC
výzbroj	proudem řízený
With motion sensor	Not dimmable
Colour	bílá
CRI	80-89 (class 1B)
Dimmable	Not dimmable
Lamp	LED module
Luminous flux	2400 lm
Power	21 W
Volatge	220-240 V
