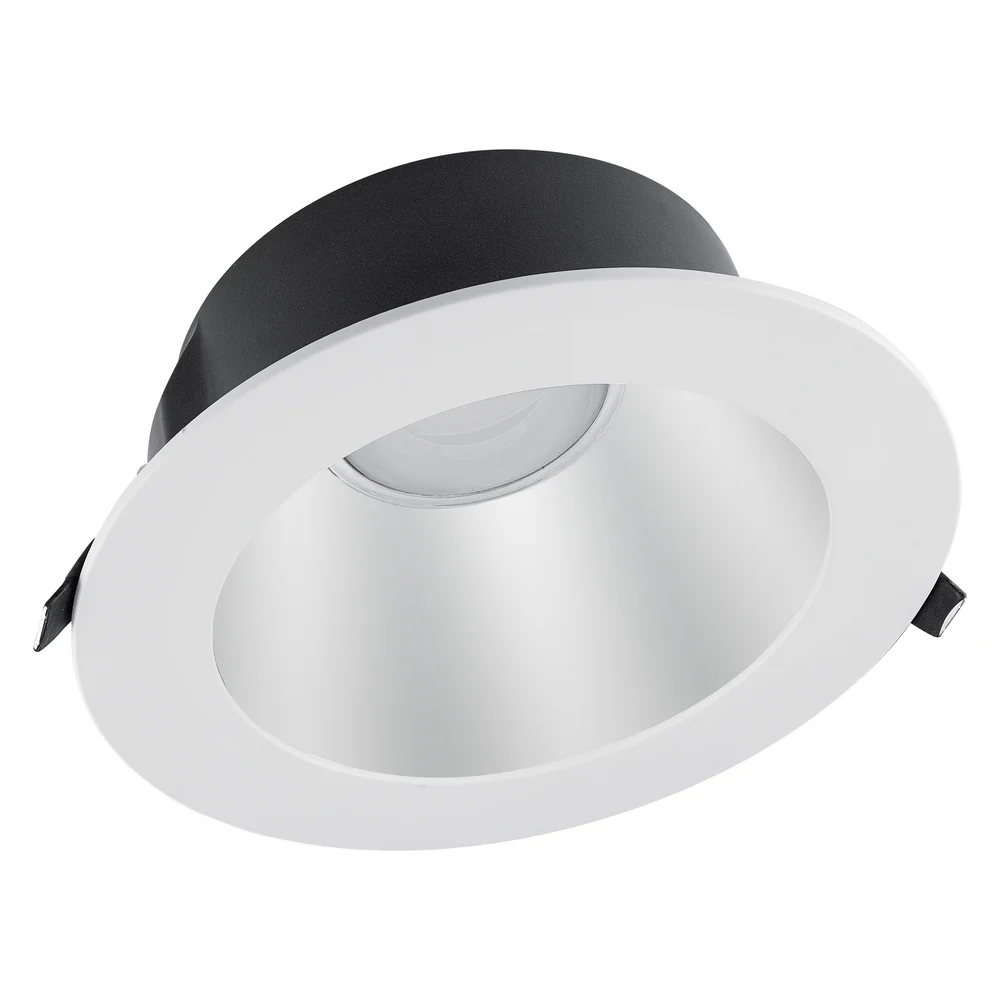

DOWNLIGHT UGR19 DN155 14 W 830 WT IP54

+15 Next

Features
EANs & additional codes
Related files

Features

Výrobce:
Manufacturer	LEDVANCE
Product family	UGR19
Logistické informace:
EAN	4058075459137
Length	180
Diameter	180

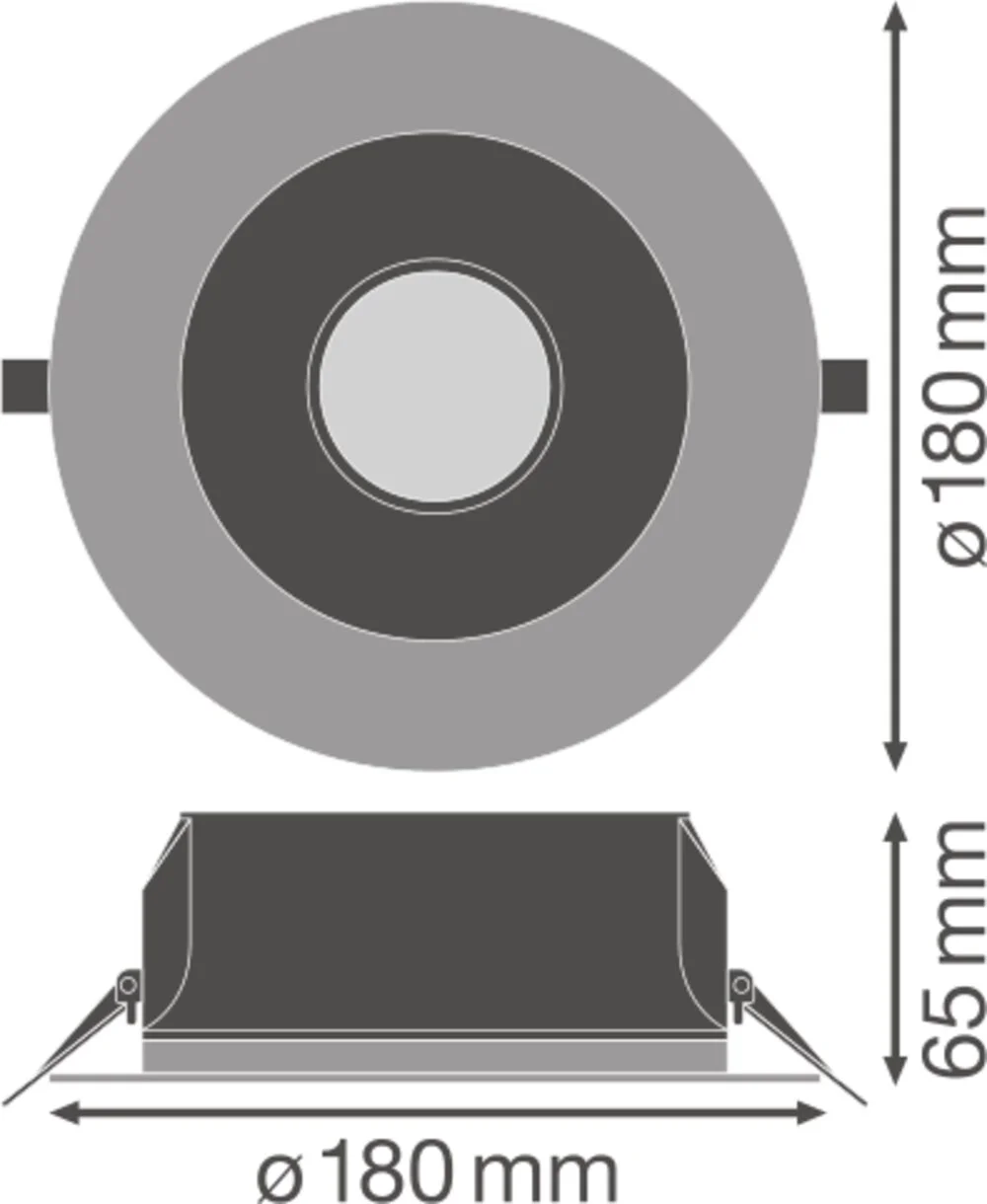

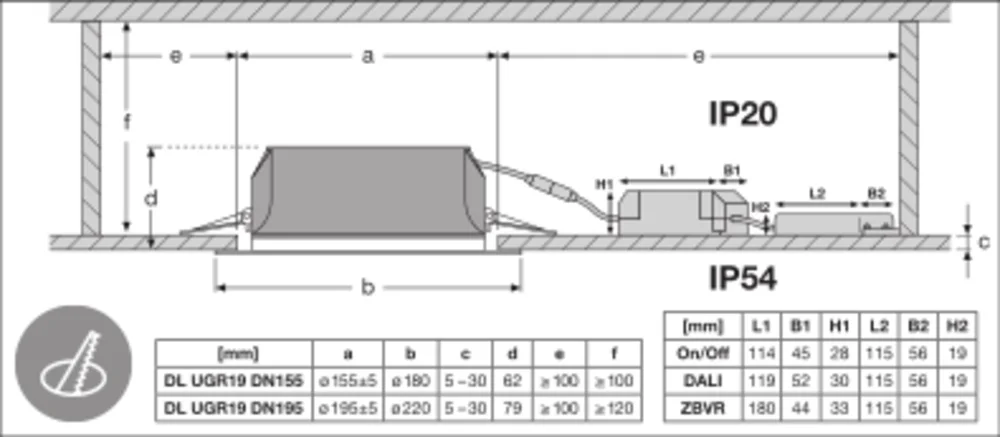

Dimensions	180x180x65mm
Width	180.00
Height	65mm

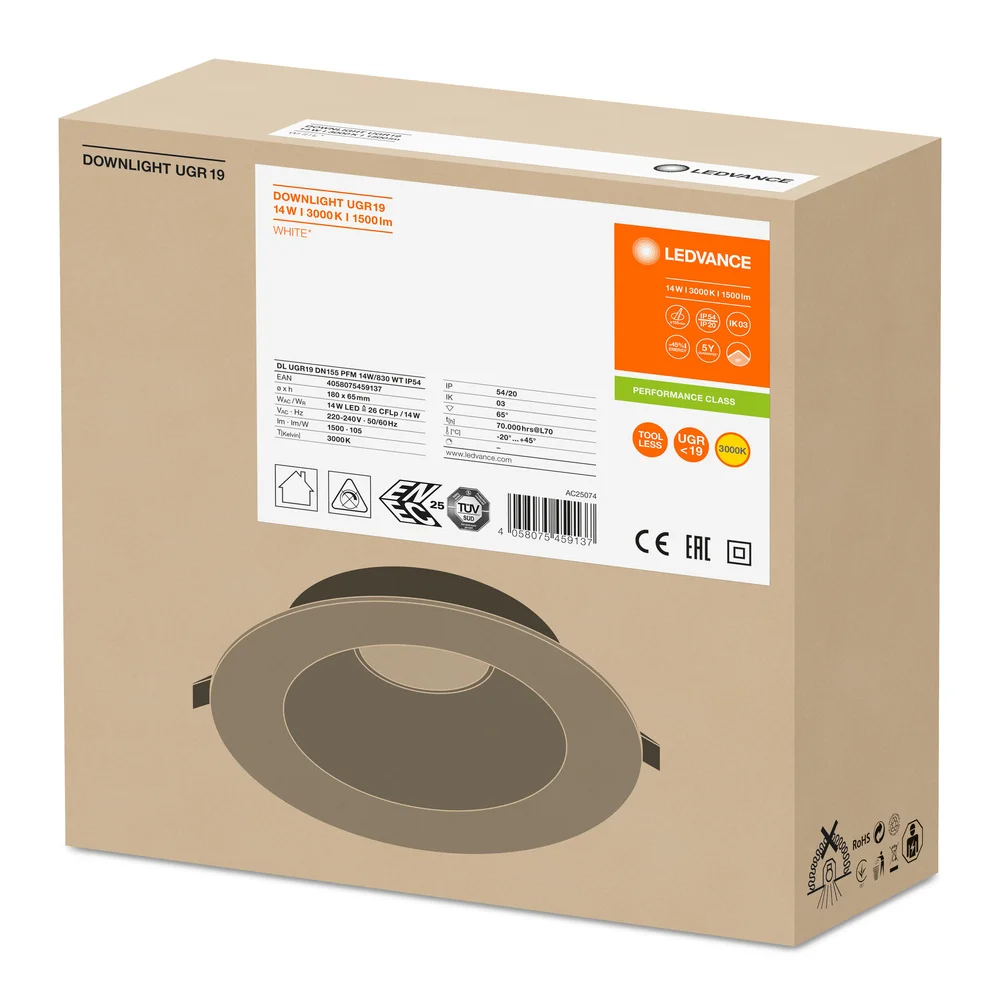

Packaging	24 ks
Energy efficiency label	A++
Others
Adjustability	pevný
barva těla	bílá

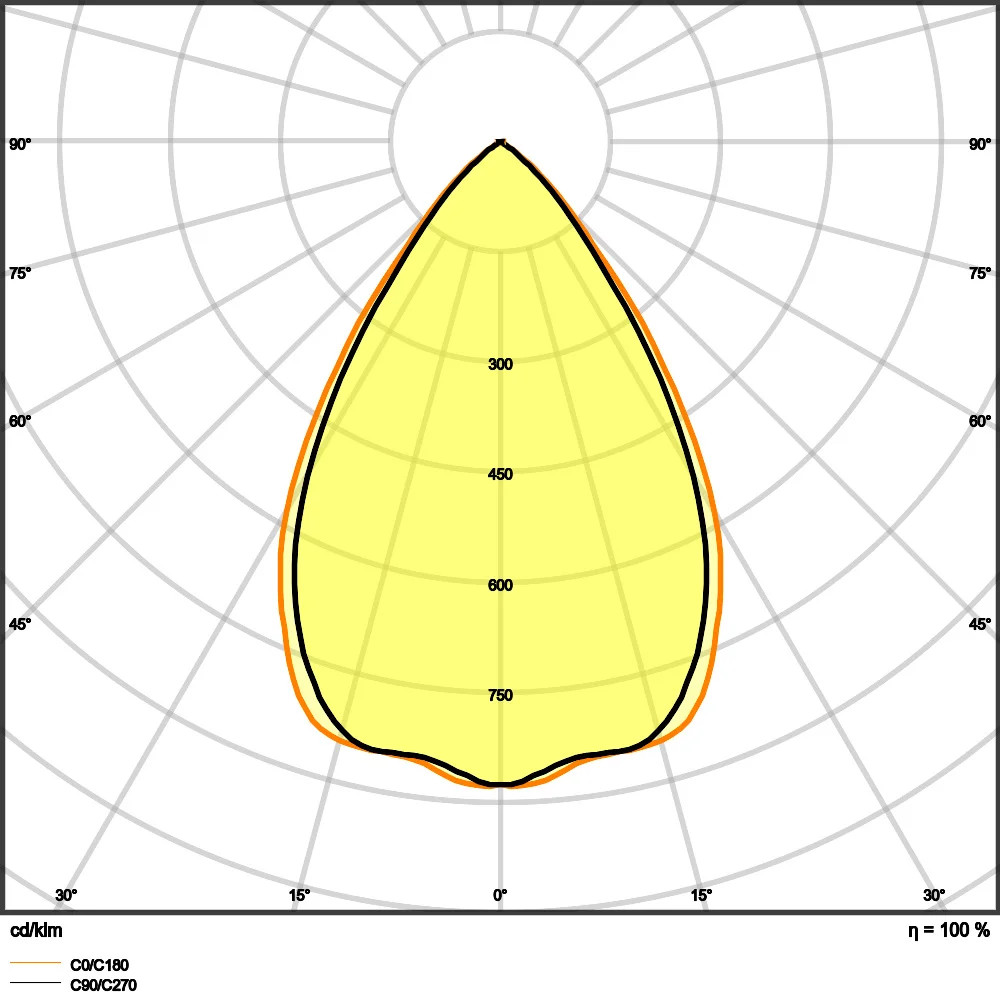

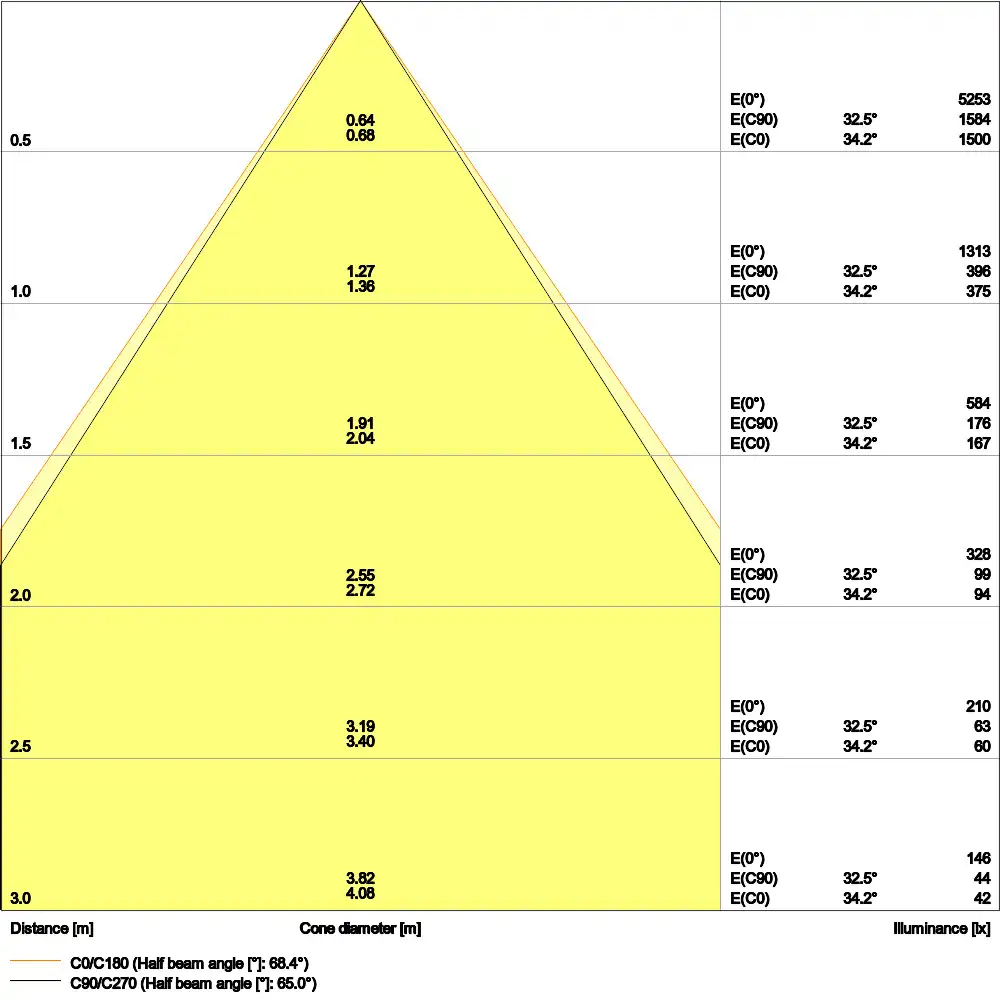

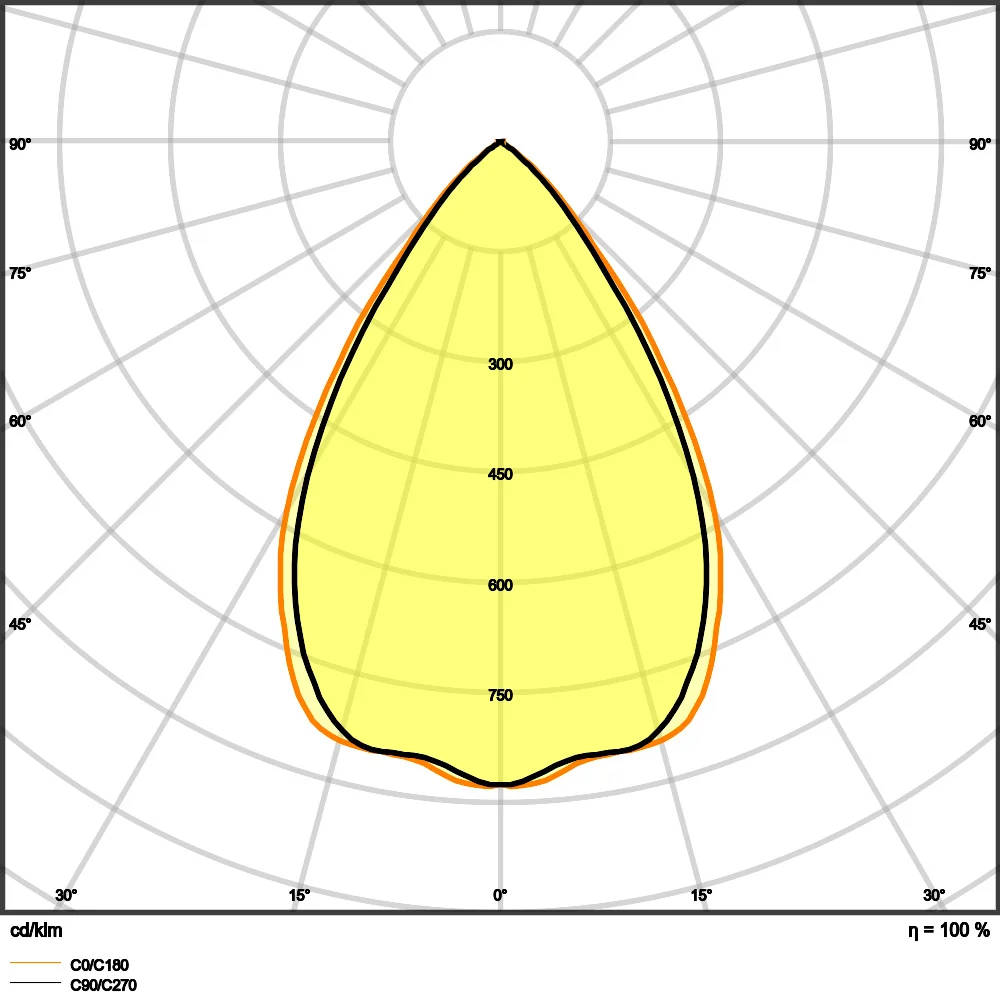

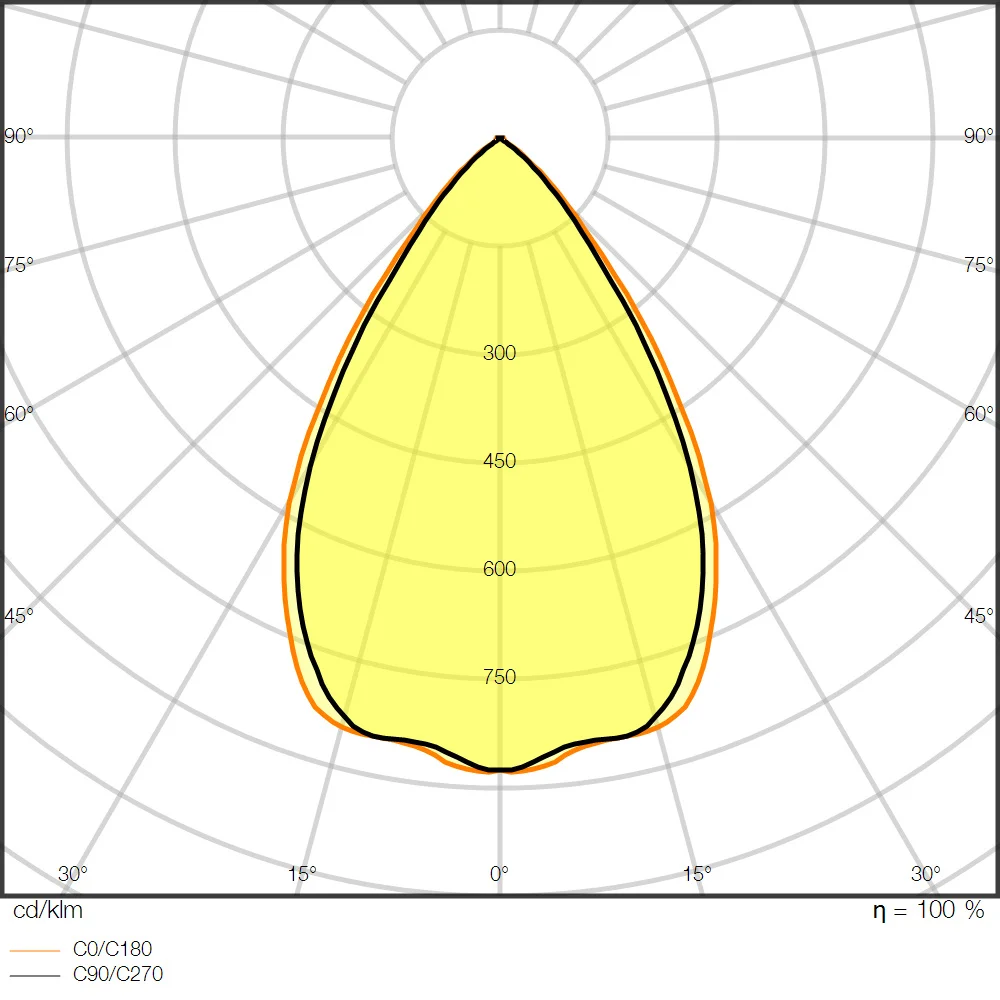

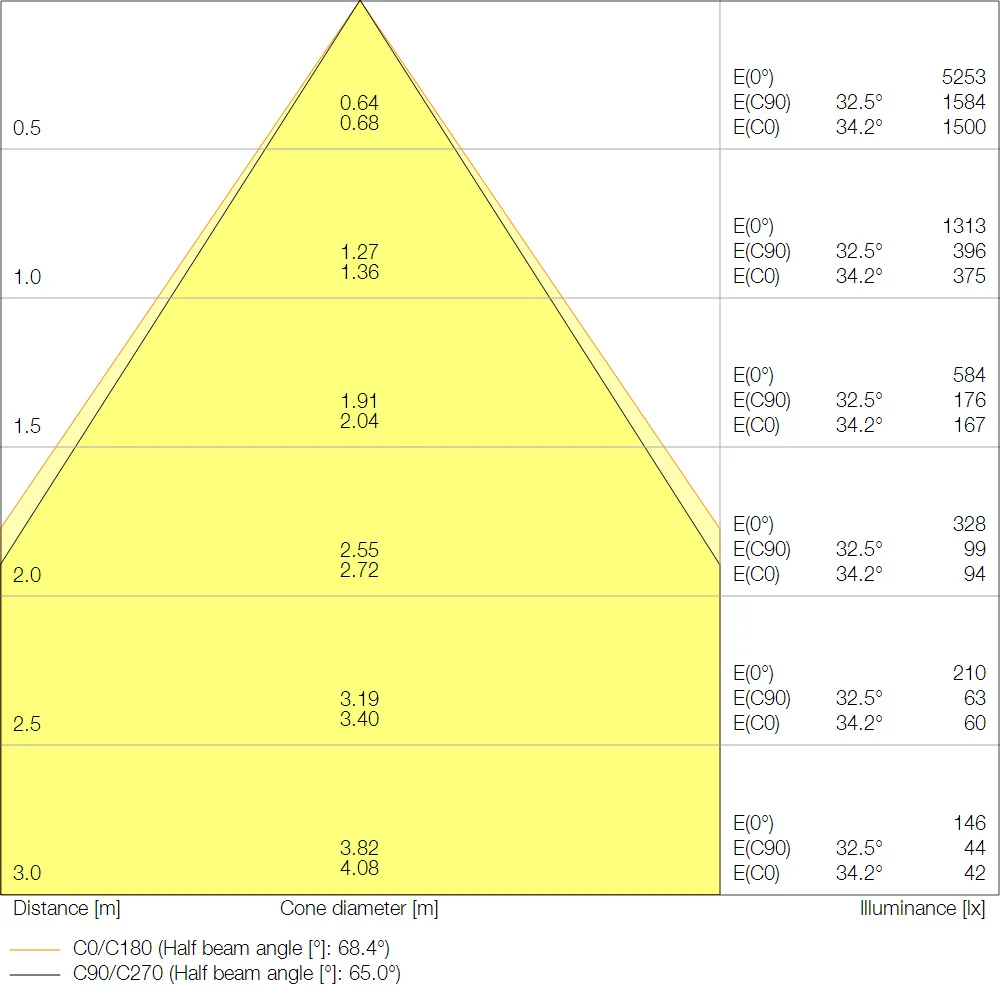

Beam angle	65 st.
Cap-base	Not applicable
Colour	bílá
Colour consistency	SDCM5
Colour of light adjustable	Not dimmable

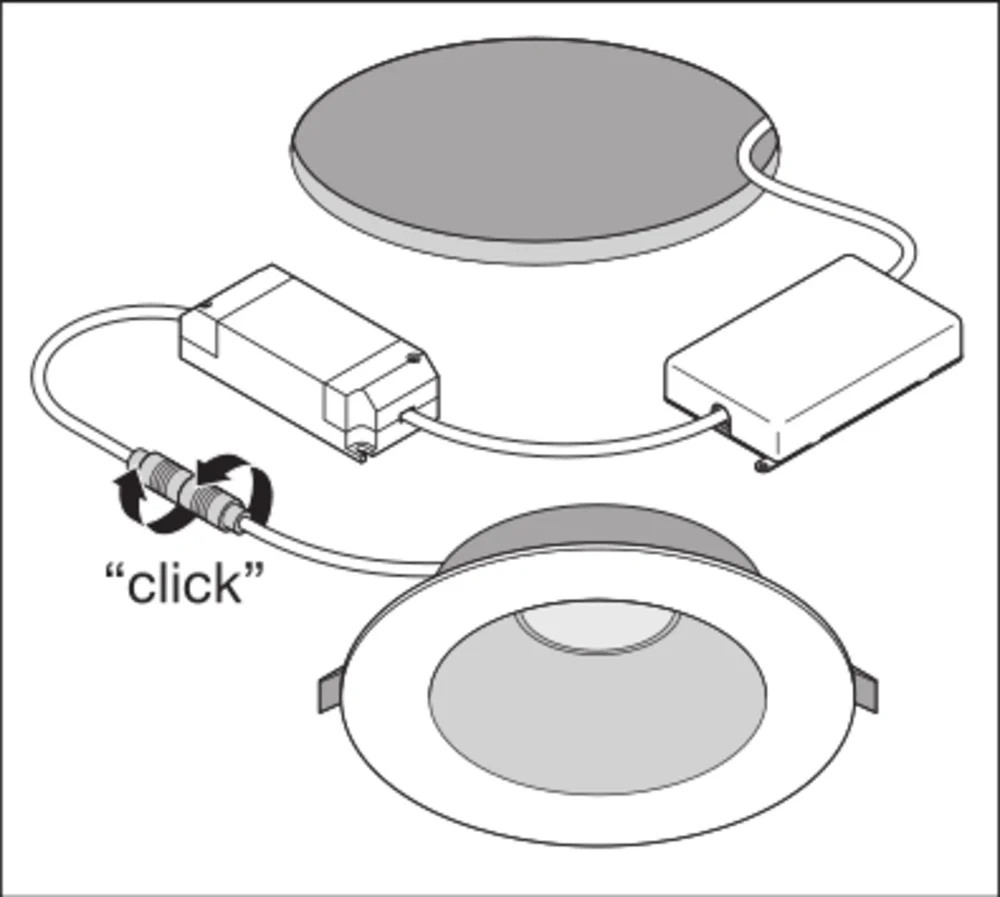

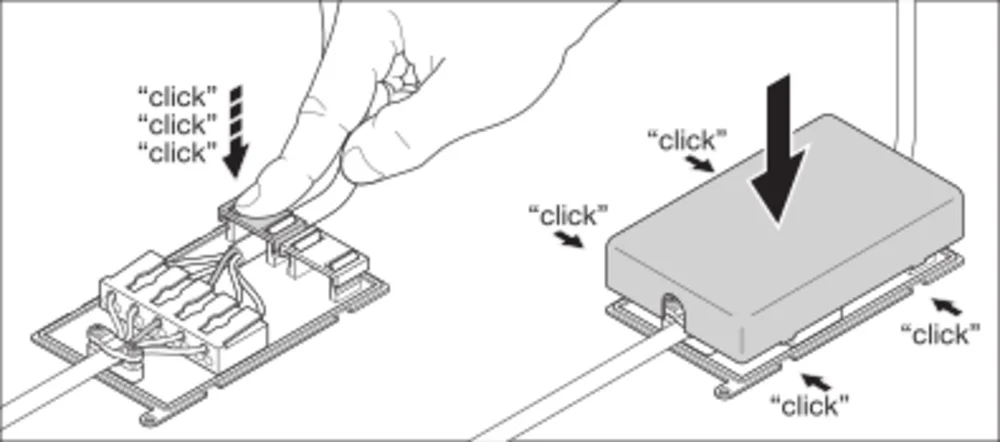

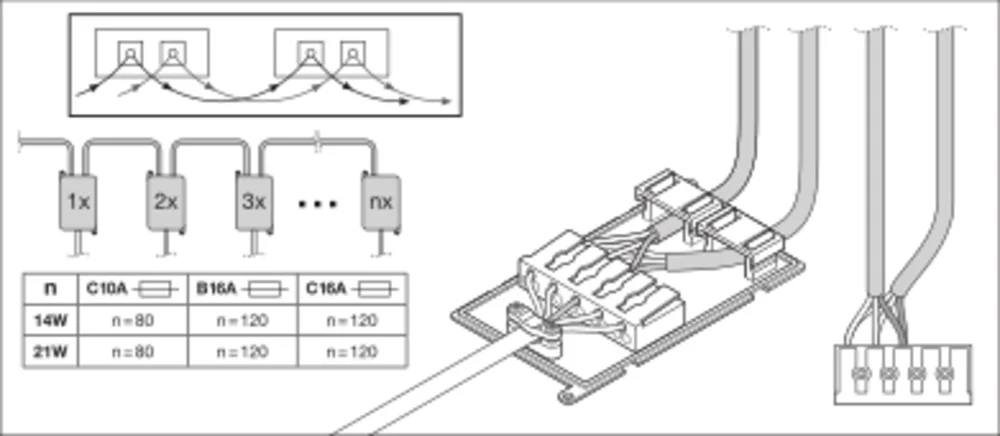

Connection type	zástrčná svorkovnice
Cover material	plast - opál
Cutout	155.0
Degree of protection (IP), front side	IP54
Degree of protection (IP), rear side	IP20
Direct/Indirect	Přímé
Driver included	Phase cut-on
Exchangeable control gear	Phase cut-on
Filament test according to IEC 60695-2-11	650 °C - 30 s
Fixture class	II
Flammable surface installation	Not dimmable
Height/Depth	65.00
Chromaticity	3030 K
Chromaticity(verbal)	Teplá
IK rating	IK03
IP rating	IP54
Item category	Professional fixtures
Item subcategory	Downlights
Lamp included	Phase cut-on
Lifespan	60000 hod
Material housing	Aluminium
Number of lamps	0
Outter diameter	180.00
Poles	2.00
přepravní rozměr cm	21.9 cm
Reflector	Vysoký lesk
Suitable for built-in mounting	Phase cut-on
Suitable for ceiling mounting	Phase cut-on
Suitable for surface mounting	Phase cut-on
Suitable for suspended mounting	Not dimmable
Suitable for wall mounting	Not dimmable
Symmetrical/Asymmetrical	Symmetrical
Transport height	219
Transport length	215
Transport width	84
Typ připojení	Vhodný pro průběžnou montáž
typ svítidla	downlight
účinnost svítidla	105
Voltage type	AC
výzbroj	proudem řízený
With motion sensor	Not dimmable
CRI	80-89 (class 1B)
Dimmable	Not dimmable
Lamp	LED module
Luminous flux	1500.00 lm
Power	14 W
Volatge	220-240 V
