MODUS light panel LED Q 34W 4100lm/3800 IP40 80Y DALI ;
KOD KRAT.:MOQ3A625/B700DALI
KOD VÝR.:Q3A625/B700DALI
EAN.:8595073700527
| Výrobce: | |
| Manufacturer | LEDVANCE |
|---|---|
| Product family | BIOLUX.HCL |
| Logistické informace: | |
| EAN | 4099854140310 |

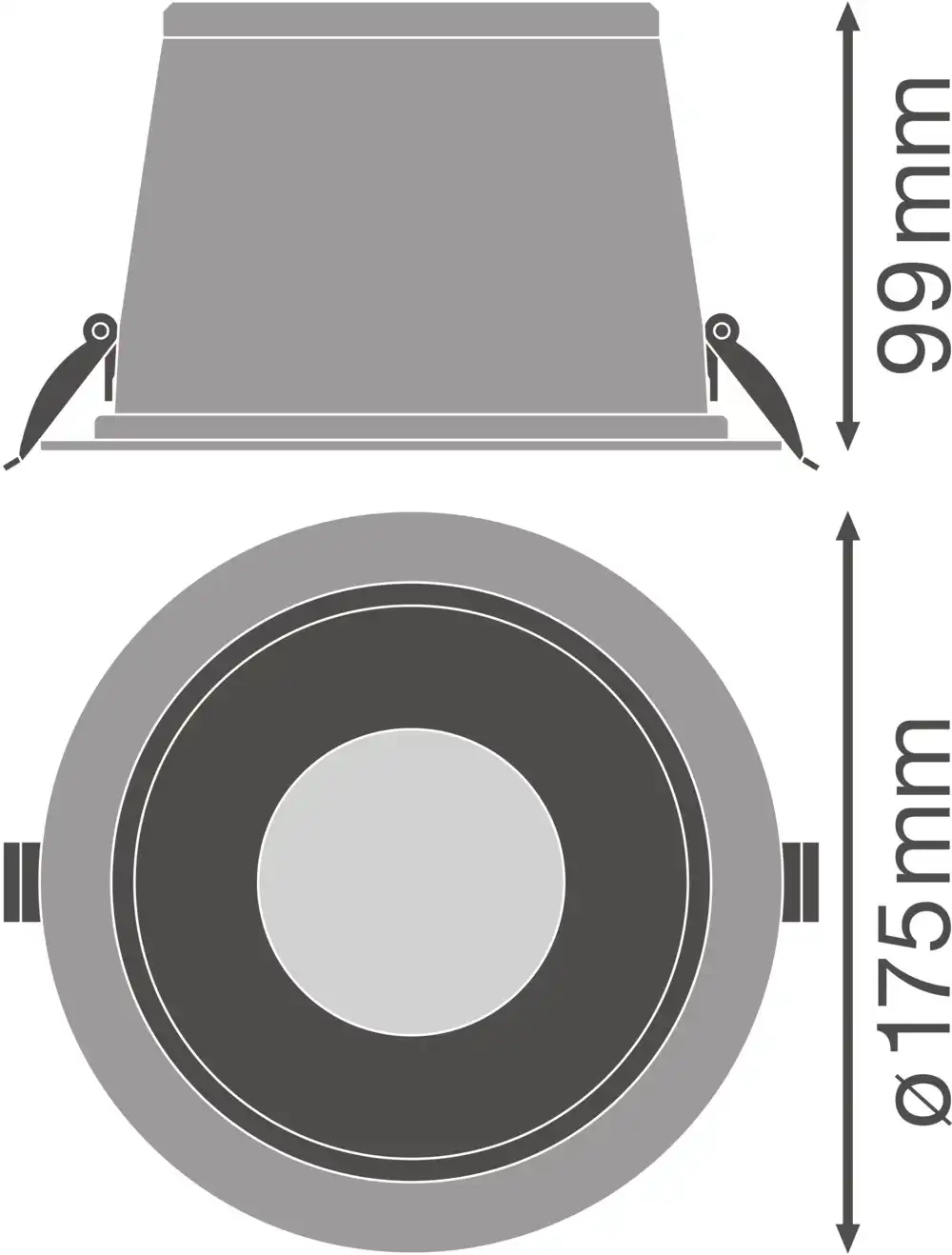

| Length | 175.00 |
| Width | 175.00 |
| Energy efficiency label | D |
| Others | |
| Adjustability | pevný |
| barva těla | bílá |

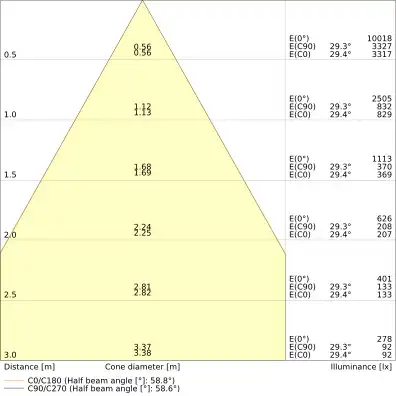

| Beam angle | 41-80° st. |
| Cap-base | ostatní |
| Colour consistency | SDCM3 |
| Colour of light adjustable | Spojitý |

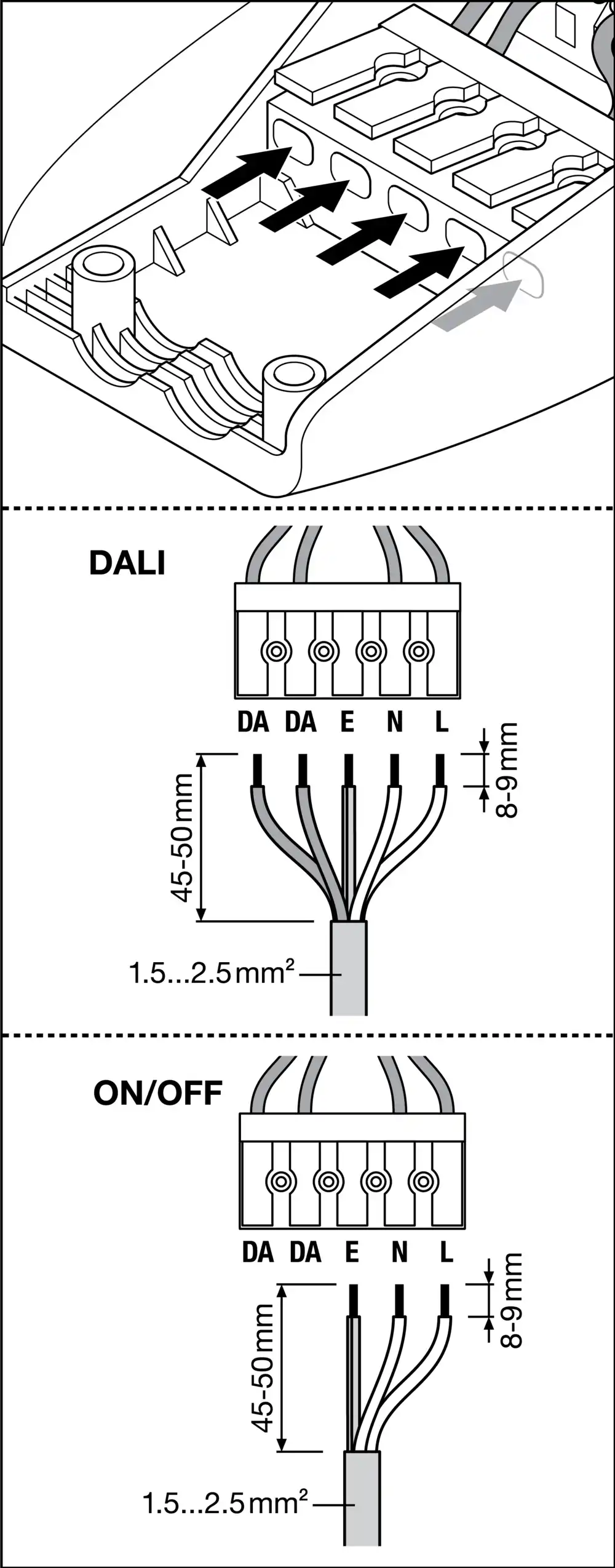

| Connection type | zástrčná svorkovnice |
| Cover material | plast - opál |
| CRI | 90+ |
| Degree of protection (IP), rear side | IP20 |
| Dimmable | DALI |
| Direct/Indirect | Přímé |
| Driver included | Phase cut-on |
| Exchangeable control gear | Phase cut-on |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Fixture class | II |
| Flammable surface installation | Not dimmable |
| Height/Depth | 99.00 |
| Chromaticity | 2700-6500 K |
| Chromaticity(verbal) | Nastavitelná |
| IK rating | IK03 |
| Item category | Professional fixtures |
| Item subcategory | Downlights |
| Lamp included | Phase cut-on |
| Lifespan | 70000 hod |
| Luminous flux | 2200 lm |
| Material housing | Aluminium |
| Number of lamps | 0 |
| Outter diameter | 175.00 |
| Poles | 4 |
| Reflector | Vysoký lesk |
| Suitable for built-in mounting | Phase cut-on |
| Suitable for ceiling mounting | Phase cut-on |
| Suitable for surface mounting | Phase cut-on |
| Suitable for suspended mounting | Not dimmable |
| Symmetrical/Asymmetrical | Symmetrical |
| Typ připojení | Koncové |

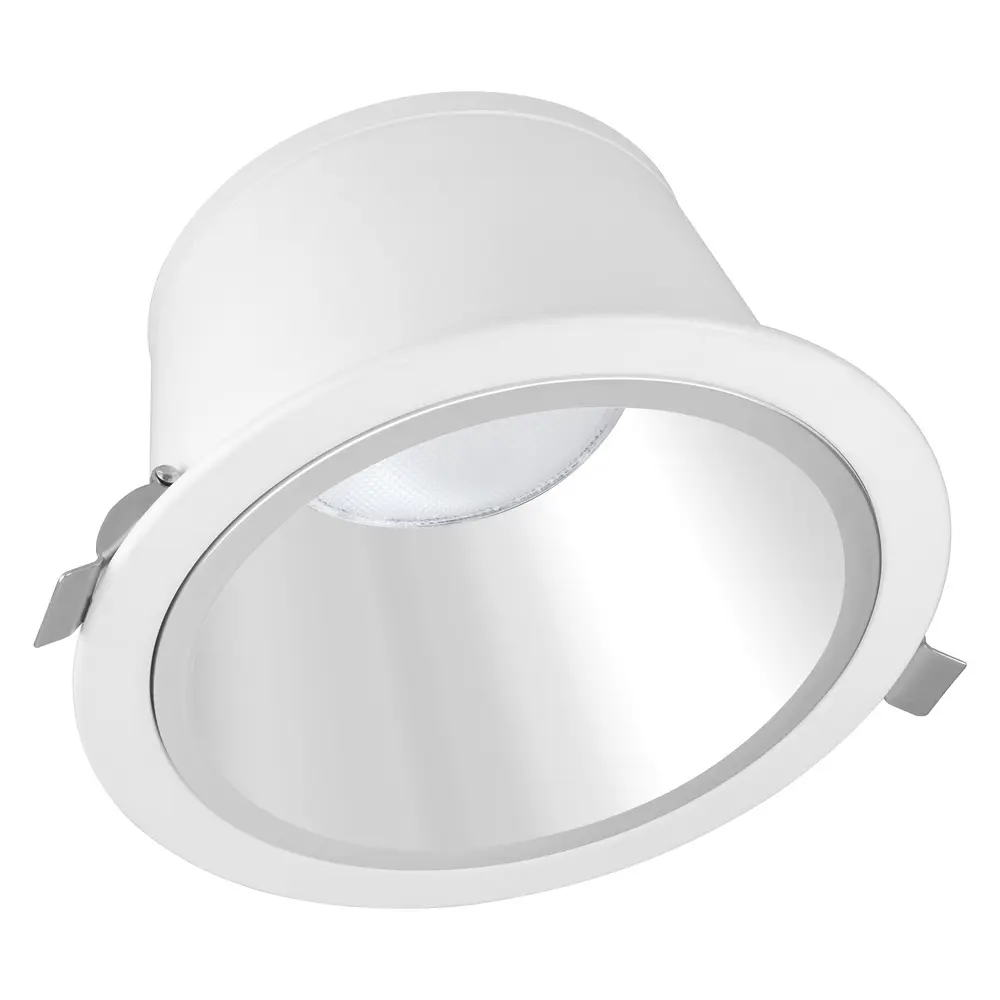

| typ svítidla | downlight |
| Voltage type | AC/DC |
| výzbroj | Electronic ballast |
| With motion sensor | Not dimmable |
| IP rating | IP20 |
| Lamp | LED |
| Power | 21 W |
| Volatge | 220-240 V |
| EAN | 4099854140310 | pcs | 1 | pcs |
| KOD | OSIBHCLDL21DALI | pcs | 1 | pcs |
| EAN | 4099854140327 | box | 11 | pcs |
